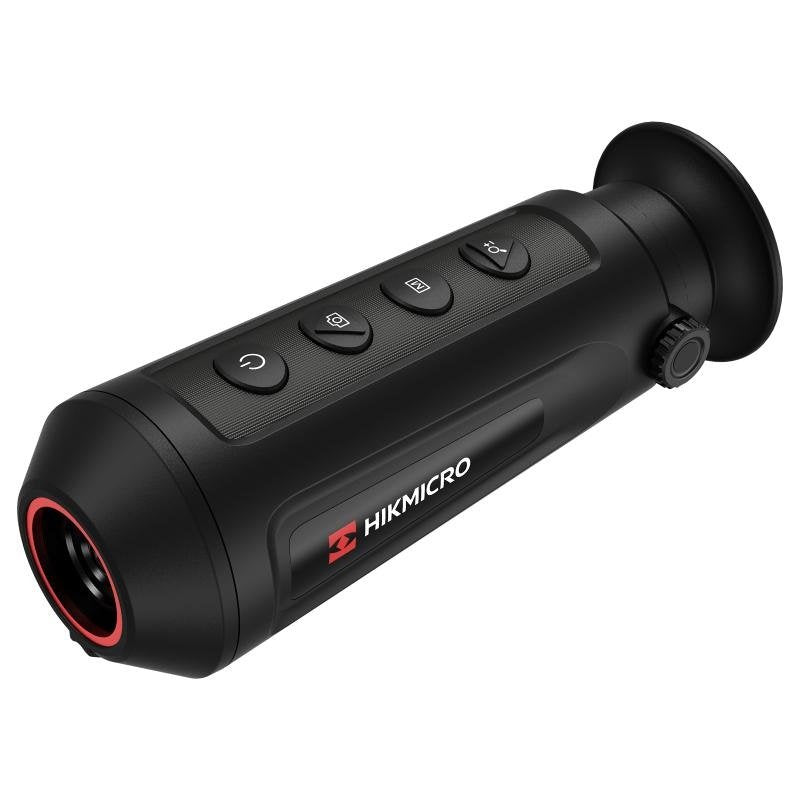

HIKMICRO LYNX Pro LE15 | Handheld Thermal Monocular | 256 × 192, 15 mm, 750 m
The LYNX Pro LE15 keeps the 256 × 192 detector of the LE10 but moves to a 15 mm lens, extending HIKMICRO's quoted detection range to 750 m with a tighter 11.69° × 8.78° view. A 720 × 540 LCOS screen shows the image.
Key features
- 15 mm focal length
- Detects at up to 750 m
- Field of view 11.69° × 8.78°
- 256 × 192 resolution, 12 µm pitch
- 1×–8× digital zoom
- Specifications
- Features
- Downloads
| Part Number | LYNX Pro LE15 |
| Brand | HIKMICRO |
| Detection | 750 m |
| Digital Zoom | 1×, 2×, 4×, 8× |
| F-number | F1.0 |
| Field of View (FOV) | 11.69° × 8.78° (H × V) |
| Focal Length | 15 mm |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 (49,152 pixels) |
| NETD | Less than 35 mK (@ 25 °C),F# = 1.0 |
| Pixel Interval | 12 µm |
| Response waveband | 8 µm to 14 µm |
- Compact size, easy to carry
- Advanced VOx 12 μm Imaging Sensor
- Long Detection Range
- Video and Snapshot
- Hotspot for Mobile App
