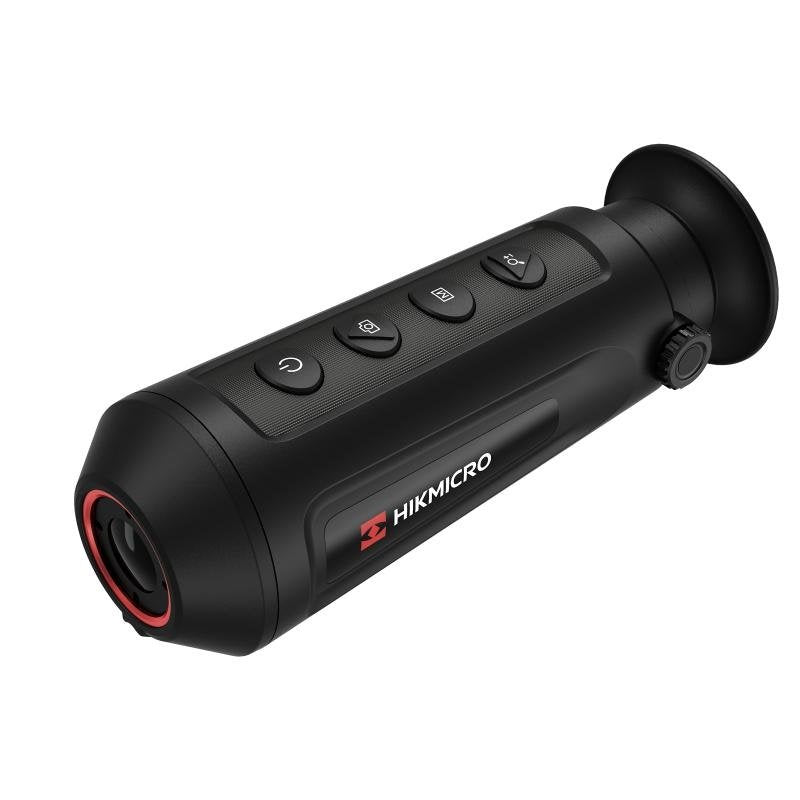

HIKMICRO LYNX Pro LH15 | Handheld Thermal Monocular | 384 × 288, 15 mm, 750 m
The HIKMICRO LYNX Pro LH15 has a 384 × 288 detector and a 1280 × 960 LCOS display, paired with a 15 mm lens for a 17.5° × 13.1° field of view. It detects targets at up to 750 m and offers distance measurement and Wi-Fi hotspot use.
Key features
- 384 × 288 infrared detector
- 1280 × 960 LCOS display
- 15 mm F1.0 objective
- 750 m detection range
- NETD under 35 mK
- Specifications
- Features
- Downloads
| Part Number | LYNX Pro LH15 |
| Brand | HIKMICRO |
| Detection | 750 m |
| F-number | F1.0 |
| Field of View (FOV) | 17.5° × 13.1° (H × V) |
| Focal Length | 15 mm |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| NETD | Less than 35 mK (@25°C),F#=1.0 |
| Pixel Interval | 12 µm |
| Response waveband | 8 µm to 14 µm |
- Compact size, easy to carry
- Advanced VOx 12 μm Imaging Sensor
- Long Detection Range
- Video and Snapshot
- Hotspot for Mobile App
