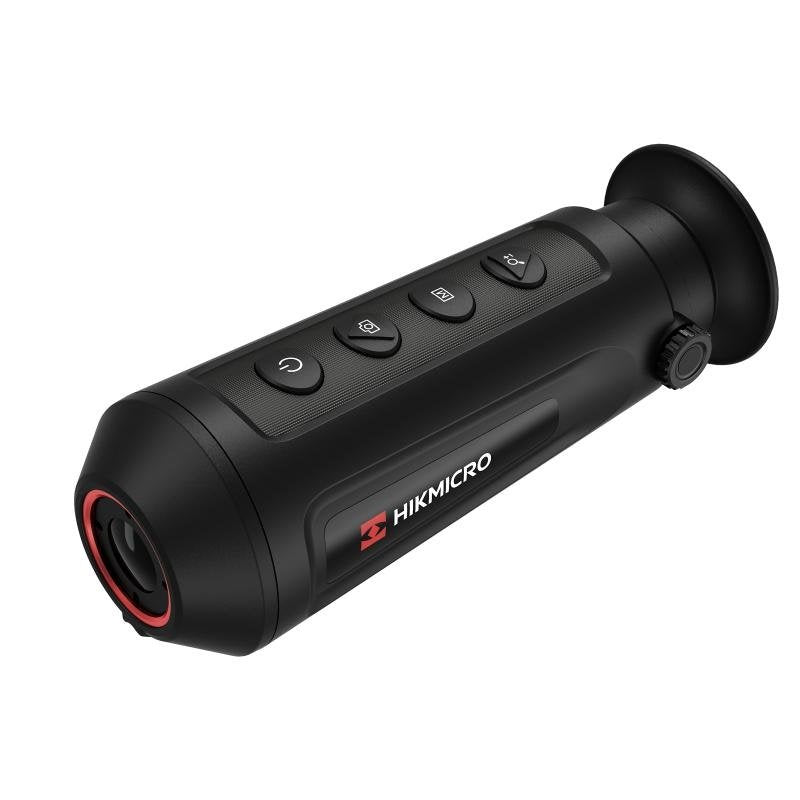

HIKMICRO LYNX Pro LH19 | Handheld Thermal Monocular | 384 × 288, 19 mm, 900 m
Fitted with a 19 mm lens, the HIKMICRO LYNX Pro LH19 sits between the LH15 and LH25, with a 384 × 288 detector, 13.8° × 10.4° field of view and 900 m detection range. Images are shown on a 1280 × 960 LCOS display.
Key features
- 19 mm lens, F1.0
- 900 m detection distance
- 13.8° × 10.4° field of view
- 384 × 288 thermal resolution
- Digital zoom 1×, 2×, 4×, 8×
- Specifications
- Features
- Downloads
| Part Number | LYNX Pro LH19 |
| Brand | HIKMICRO |
| Detection | 900 m |
| Digital Zoom | 1×, 2×, 4×, 8× |
| F-number | F1.0 |
| Field of View (FOV) | 13.8° × 10.4° (H × V) |
| Focal Length | 19 mm |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| NETD | Less than 35 mK (@25°C),F#=1.0 |
| Pixel Interval | 12 µm |
| Response waveband | 8 µm to 14 µm |
- Compact size, easy to carry
- Advanced VOx 12 μm Imaging Sensor
- Long Detection Range
- Video and Snapshot
- Hotspot for Mobile App
