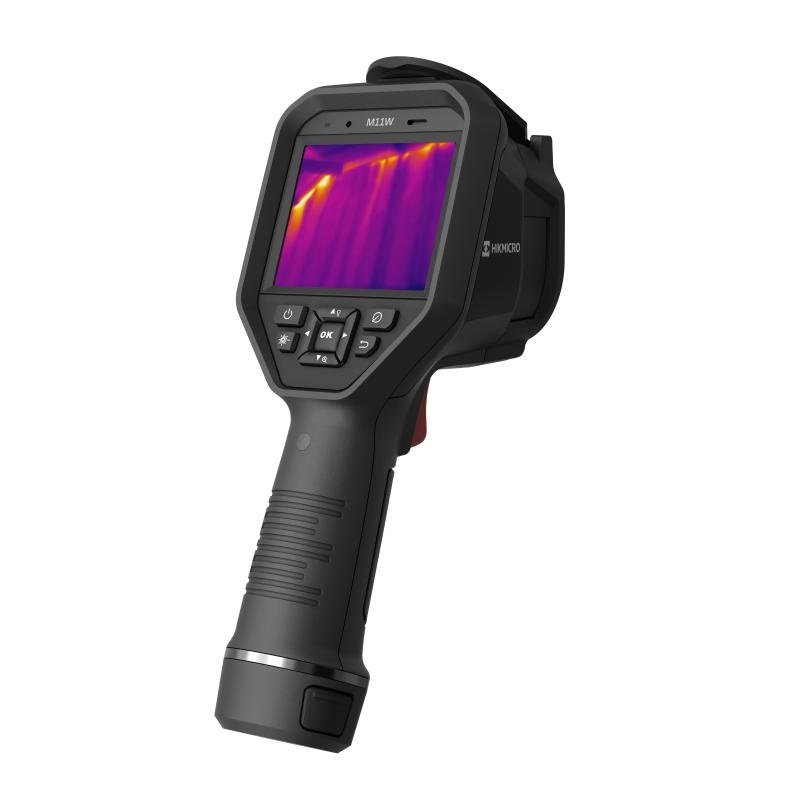

HIKMICRO M11W | Wide-Angle Thermography Camera | 192 × 144, 37.2° × 27.8° FOV
The HIKMICRO M11W is the wide-angle version of the M11, using a 3.6 mm lens for a 37.2° × 27.8° field of view so more of a large object fits in one image. It keeps the 192 × 144 detector, 8MP visual camera and 3.5-inch touchscreen.
Key features
- Wide 37.2° × 27.8° field of view
- 192 × 144 thermal detector, SuperIR 384 × 288
- 3.6 mm focal length, 3.33 mrad IFOV
- 8MP visual camera with 3.5-inch touch display
- Fusion and picture-in-picture modes
- Specifications
- Features
- Downloads
| Part Number | HIKMICRO M11W |
| Brand | HIKMICRO |
| Detector Pitch | 12 µm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° x 27.8° |
| Focal Length | 3.6 mm |
| Image Frequency | 25 Hz |
| IR Resolution | 192 × 144 (27,648 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Spectral range | 7.5 to 14 µm |
| SuperIR | 384 × 288 (110,592 pixels) |
- High Image Quality
- Manual Focus
- Interchangeable Battery System
- Multiple Image Annotations
- 1-Tap Level & Span
- Multiple Image Mode
- Rugged & Durable Design
- Laser Pointer
- Conveniently Share Images and Reports
