HIKMICRO M20W | Wide-Angle Thermography Camera | 256 × 192, 50° × 37.2° FOV

Name: HIKMICRO M20W | Wide-Angle Thermography Camera | 256 × 192, 50° × 37.2° FOV
Brand: HIKMICRO
SKU: HIKMICRO M20W
Price: 6216.00 AED
Availability: InStock

Part Number : HIKMICRO M20W

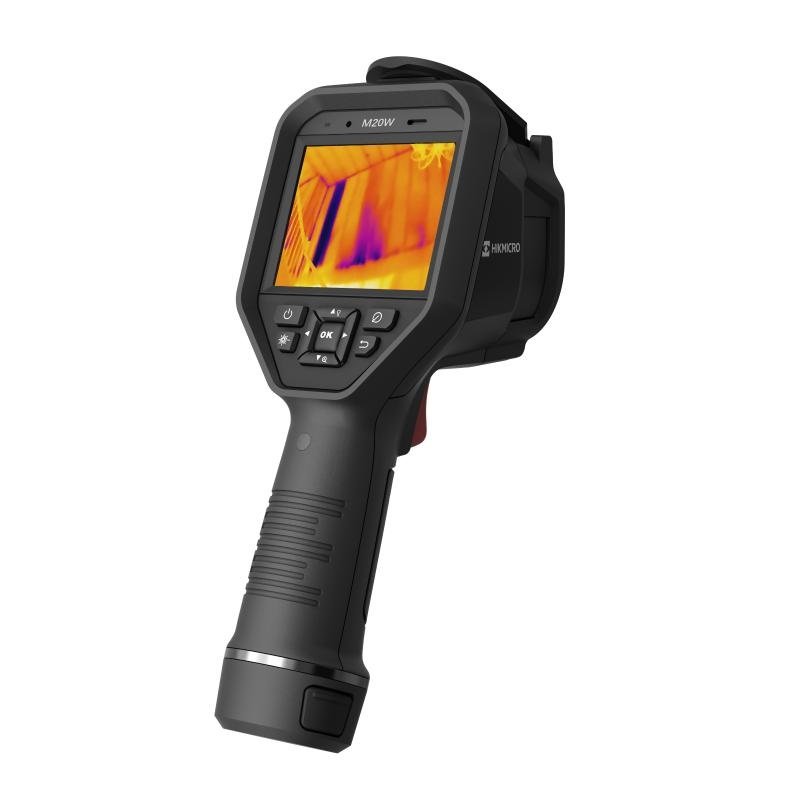

HIKMICRO's M20W combines the 256 × 192 detector of the M20 with a 3.6 mm wide-angle lens covering 50° × 37.2°, making it suited to capturing large objects in a single frame. It has an 8MP visual camera and a 3.5-inch touchscreen.

Key features

50° × 37.2° wide field of view
256 × 192 IR resolution, SuperIR 512 × 384
3.6 mm fixed-focus lens
IFOV of 3.33 mrad
8MP visual channel, fusion imaging

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	HIKMICRO M20W
Brand	HIKMICRO
Detector Pitch	12 µm
F-number	F1.0
Field of View (FOV)	50° × 37.2°
Focal Length	3.6 mm
Image Frequency	25 Hz
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Spatial Resolution (IFOV)	3.33 mrad
Spectral range	7.5 to 14 µm
SuperIR	512 × 384 (196,608 pixels)

High Image Quality
Manual Focus
Interchangeable Battery System
Multiple Image Annotations
1-Tap Level & Span
Multiple Image Mode
Rugged & Durable Design
Laser Pointer
Conveniently Share Images and Reports
