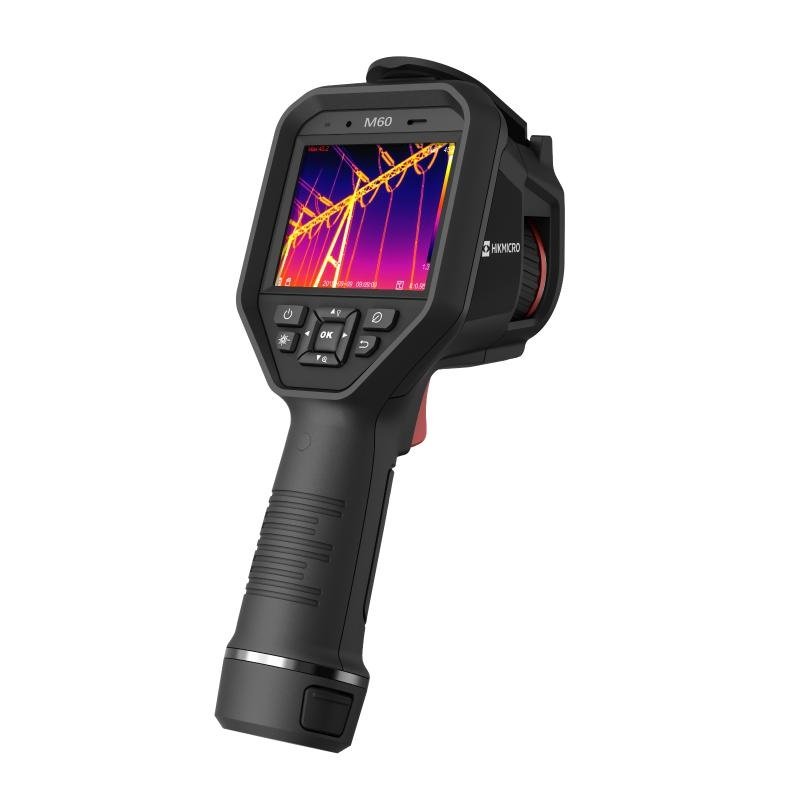

HIKMICRO M60 | Advanced Thermal Imaging Camera | 640 × 480, 15 mm lens
The HIKMICRO M60 carries a 640 × 480 detector with SuperIR output of 1280 × 960, the highest resolution in this M-series group. A 15 mm lens gives a 41.9° × 33.3° field of view and 1.13 mrad spatial resolution for temperature measurement work.
Key features
- 640 × 480 thermal resolution (307,200 pixels)
- SuperIR up to 1280 × 960
- 15 mm focal length, F1.0
- 41.9° × 33.3° field of view
- 1.13 mrad IFOV, NETD below 35 mK
- Specifications
- Features
- Downloads
| Part Number | HIKMICRO M60 |
| Brand | HIKMICRO |
| Detector Pitch | 17 µm |
| F-number | F1.0 |
| Field of View (FOV) | 41.9° × 33.3° |
| Focal Length | 15 mm |
| Image Frequency | 25 Hz |
| IR Resolution | 640 × 480 (307,200 pixels) |
| NETD | < 35 mK (@ 25 °C, F#=1.0) |
| Spatial Resolution (IFOV) | 1.13 mrad |
| Spectral range | 7.5 to 14 µm |
| SuperIR | 1280 × 960 (1,228,800 pixels) |
- High Image Quality
- Manual Focus
- Interchangeable Battery System
- Multiple Image Annotations
- 1-Tap Level & Span
- Multiple Image Mode
- Rugged & Durable Design
- Laser Pointer
- Conveniently Share Images and Reports
