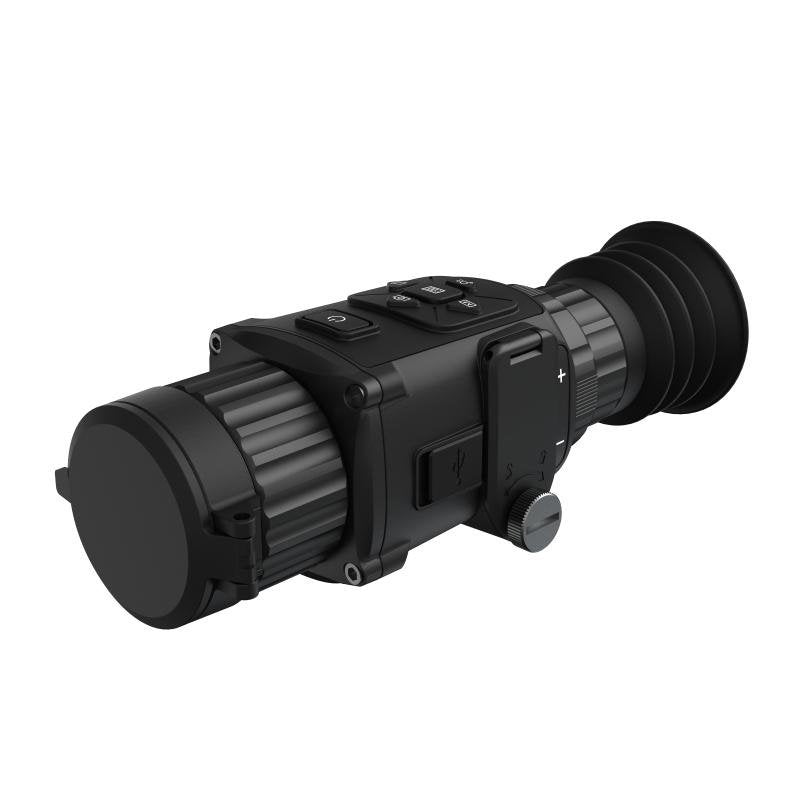

HIKMICRO Thunder TH25 | Thermal Image Scope | 384 × 288, 25 mm, 900 m
The HIKMICRO Thunder TH25 (model HM-TR13-25XF/W-TH25) is a thermal image scope with a 384 × 288 detector and 1024 × 768 OLED display. It can also be used as a handheld monocular, and its 25 mm lens gives 900 m detection.
Key features
- 384 × 288 detector, 17 µm
- 25 mm lens, 14.9° × 11.2° field of view
- Detection range 900 m
- Usable as scope or handheld monocular
- 50 Hz frame rate
- Specifications
- Features
- Downloads
| Part Number | Thunder TH25 |
| Brand | HIKMICRO |
| Detection | 900 m |
| Field of View (FOV) | 14.9° × 11.2° |
| Focal Length | 25 mm |
| Frame Rate | 50 Hz |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| NETD | Less than 35 mK (@25°C),F#=1.0 |
| Pixel Interval | 17 µm |
| Response waveband | 8 µm to 14 µm |
| Spatial Resolution (IFOV) | 0.68 mrad |
| Model Code | HM-TR13-25XF/W-TH25 |
High Image Quality
Large OLED Display
Optional Reticle Types
Make zeroing easier
Replaceable Batteries
High Shock Resistance
IP67 Waterproof Rated
