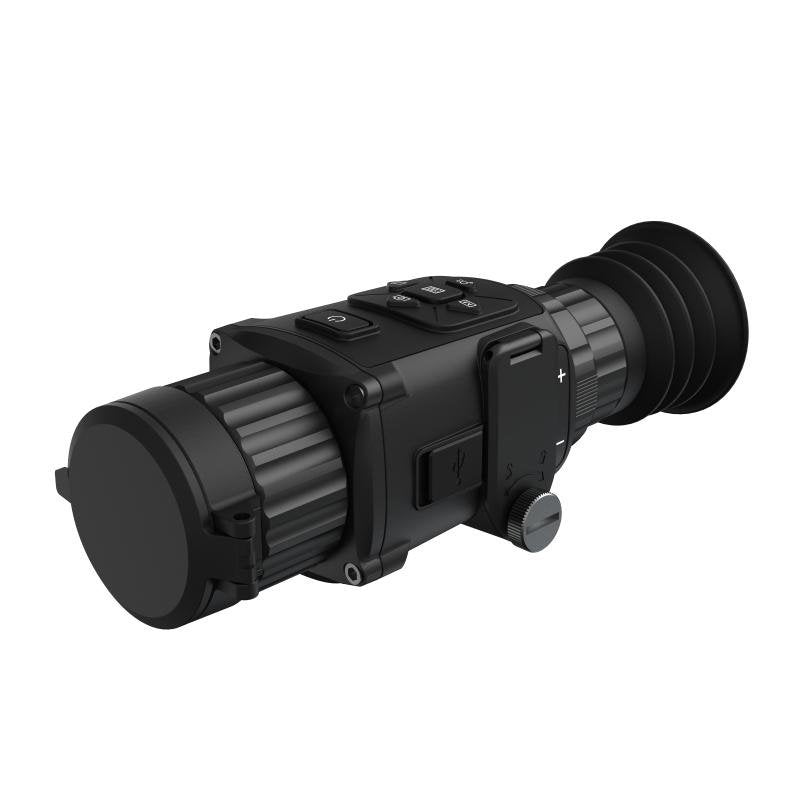

HIKMICRO Thunder TH35 | Thermal Image Scope | 384 × 288, 35 mm, 1300 m
The Thunder TH35 (HM-TR13-35XF/W-TH35) is HIKMICRO's 35 mm version of the Thunder scope, with a 384 × 288 detector, 10.0° × 8° view and 1300 m detection. It works as a clip-on scope, a handheld monocular or a thermal imaging scope.
Key features
- 35 mm focal length
- 1300 m detection distance
- 384 × 288 resolution, 0.49 mrad IFOV
- Clip-on, handheld or scope use
- 1024 × 768 OLED display
- Clear images through fog, smoke, dust, rain and snow
- Specifications
- Features
- Downloads
| Part Number | Thunder TH35 |
| Brand | HIKMICRO |
| Detection | 1300 m |
| Field of View (FOV) | 10.0° × 8° |
| Focal Length | 35 mm |
| Frame Rate | 50 Hz |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| NETD | Less than 35 mK (@25°C),F#=1.0 |
| Pixel Interval | 17 µm |
| Response waveband | 8 µm to 14 µm |
| Spatial Resolution (IFOV) | 0.49 mrad |
| Model Code | HM-TR13-35XF/W-TH35 |
- High Image Quality
- Large OLED Display
- Optional Reticle Types
- Make zeroing easier
- Replaceable Batteries
- High Shock Resistance
- IP67 Waterproof Rated
