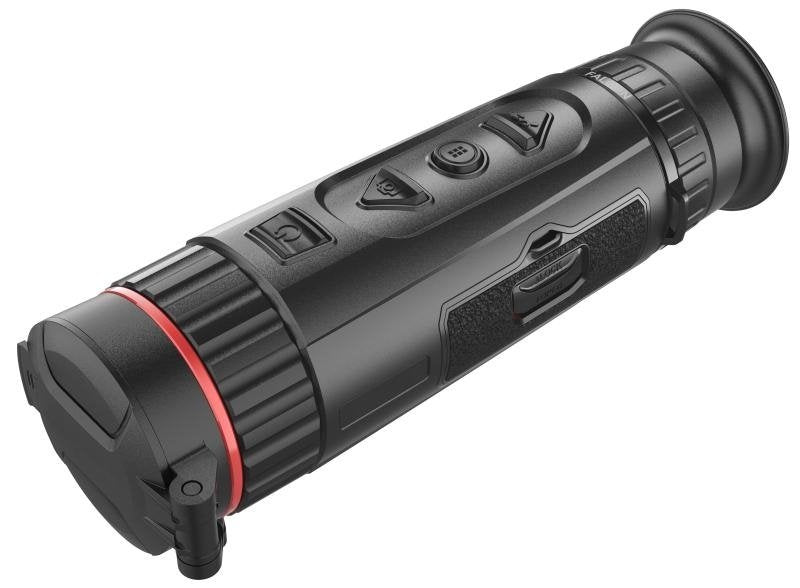

HIKMICRO Falcon FH35 | Handheld Thermal Monocular | 384 × 288, 35 mm, 1800 m
Using a 35 mm lens in front of its 384 × 288 detector, the HIKMICRO Falcon FH35 reaches a 1800 m detection range with a narrower 7.53° × 5.65° field of view. Images appear on a 1024 × 768 OLED screen, and the monocular supports distance measuring and a Wi-Fi hotspot.
Key features
- 35 mm F1.0 lens
- 1800 m detection range
- 384 × 288 thermal resolution (12 µm pixel interval)
- Thermal sensitivity under 20 mK
- Digital zoom steps of 1×/2×/4×/8×, 50 Hz refresh
- Specifications
- Features
- Downloads
| Part Number | Falcon FH35 |
| Brand | HIKMICRO |
| Detection | 1800 m |
| Digital Zoom | 1×, 2×, 4×, 8× |
| F-number | F1.0 |
| Field of View (FOV) | 7.53° × 5.65° / 13.2 m × 9.9 m |
| Focal Length | 35 mm |
| Frame Rate | 50 Hz |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| NETD | Less than 20 mK (@25°C),F#=1.0 |
| Pixel Interval | 12 µm |
| Resolution | 384 × 288 |
| Response waveband | 8 µm to 14 µm |
- Ultra Clear Image. Impressive Detail Recognition
- Extremely high thermal sensitivity, NETD<20mK
- High definition thermal sensor, up to 640x512 @12μm
- Super large aperture f/0.9 lens, 19% improvement
- Image Pro, enhanced self-developed image processing algorithm
- Ergonomic cylindrical shape design for better operation experience
- Perfect component design for intuitive operation and ease-to-use
- Robust magnesium housing and lens coating material for long-time use
- Replaceable and Rechargeable High Capacity Battery, Not-stop Observation
- Powerful digital zoom, up to 8x
