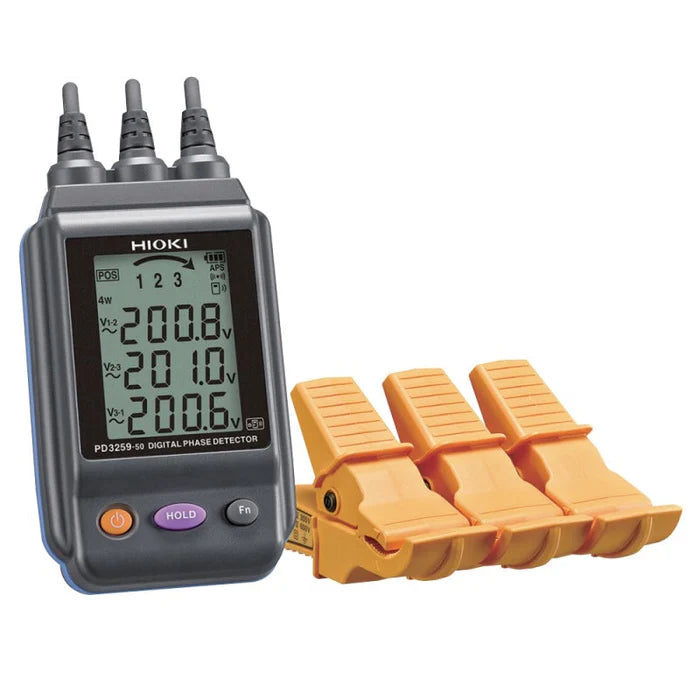

Hioki PD3259-50 Digital Phase Detector

Name: Hioki PD3259-50 Digital Phase Detector
Brand: Hioki
SKU: PD3259-50
Availability: OutOfStock

Part Number : PD3259-50

In order to safeguard clients who must perform on-site electrical work as part of building and manufacturing facility expansions and renovations, Hioki non-contact voltage detection and measuring equipment prioritizes efficiency and safety. By simply clipping onto covered cables, the PD3259-50 Digital Phase Detector allows you to measure three-phase voltage and detect phase sequence concurrently, guaranteeing complete safety by avoiding any contact with metal components.

Availability: Sold out

Specifications
Features
Downloads

Voltage Range	90.0 V to 520.0 V
Measurable Conductor Diameter	6 mm to 30 mm.
Safety Rating	CAT IV 600 V
Durability	IP54

Available to check the unbalance rate and vector diagram in our free app GENNECT Cross
World’s first non-metallic contact voltage detection and testing and simply clip onto wire insulation
Phase detection check and line-to-line voltage inspection at the same time
Easy and intuitive phase detection check with backlight and buzzer
Ideal for work certification photos, offering a simultaneous display of phase sequence and 3-phase voltage
Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
