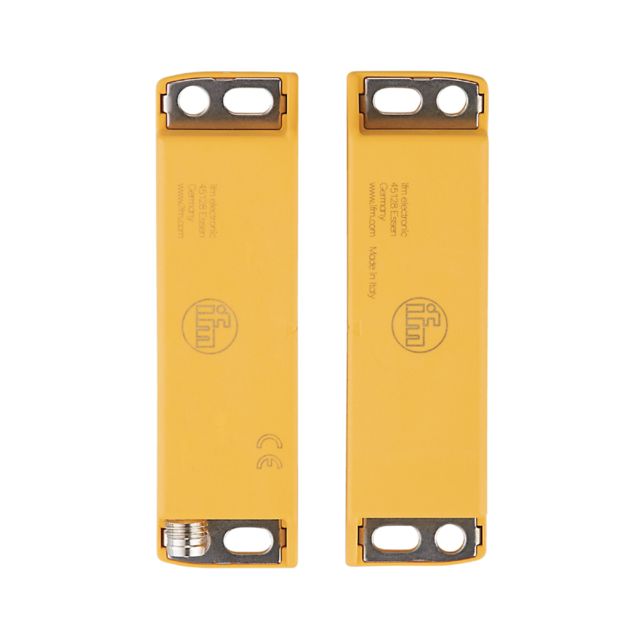

ifm MN502S, MN Series Non-Flush Magnetic Safety Switch, 24V dc, Polyamide Housing, 2NO, M8

Name: ifm MN502S, MN Series Non-Flush Magnetic Safety Switch, 24V dc, Polyamide Housing, 2NO, M8
Brand: ifm
SKU: MN502S
Availability: InStock

Part Number : MN502S

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic magnetically coded sensor ensures high precision and reliability in safety-related applications. Featuring a rugged rectangular housing, it operates effectively in diverse environmental conditions and supports long-term, permanent use. Its advanced sensing technology and defined actuator deliver robust performance, while the M8 connector facilitates easy integration and streamlined installation. Built to meet stringent safety standards, this sensor is ideal for systems where safety and operational efficiency are paramount.

Actuation possible from different directions
Conceal behind stainless steel for enhanced tamper prevention
Meets the new interface description CB24I from ZVEI
Highest security level according to ISO 13849-1 up to PL e in connection with an evaluation unit

Brand	ifm
Supply Voltage	24V dc
Safety Contacts	2NO
Housing Material	Polyamide
Connection Type	M8
Installation Type	Non-Flush
Switch Type	Magnetic
Sensor Principle	Magnetic
Series	MN

ifm MN502S, MN Series Non-Flush Magnetic Safety Switch, 24V dc, Polyamide Housing, 2NO, M8
