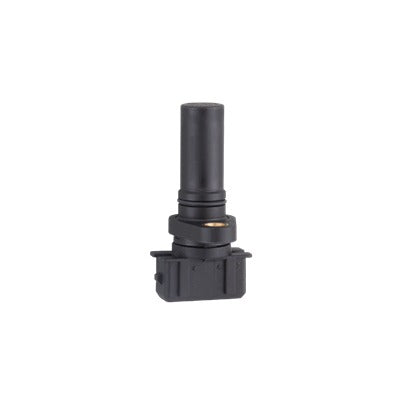

ifm MX5004 | Motion Control Sensor | NPN Open Collector

Name: ifm MX5004 | Motion Control Sensor | NPN Open Collector
Brand: ifm
SKU: MX5004
Availability: InStock

Part Number : MX5004

The ifm MX5004 is a motion control sensor with encoder technology Magnetic, output signal type NPN Open Collector and shaft type Round.

Encoder Technology: Magnetic
Output Signal Type: NPN Open Collector
Shaft Type: Round
Shaft Diameter: 15mm

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic speed sensor operates at a voltage range of 7 to 30 V DC with a current consumption below 30 mA. It has a protection class III rating and does not include reverse polarity protection. The output is designed as NPN, with a permanent current rating of 50 mA for the switching output. The sensor supports a switching frequency from 1 Hz up to 15,000 Hz.

IP69K rated
NPN

Brand	ifm
Encoder Technology	Magnetic
Series	MX
Output Signal Type	NPN Open Collector
Shaft Type	Round
Shaft Diameter	15mm
