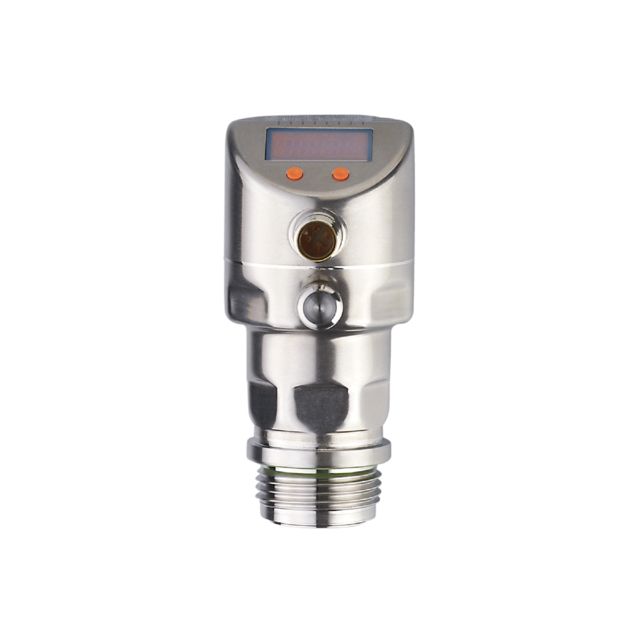

ifm PI2798 | Pressure Sensor | -0.0124bar to 0.25bar, -0.0124bar to 0.25bar
The ifm PI2798 is a pressure sensor with pressure range -0.0124bar to 0.25bar, pressure range -0.0124bar to 0.25bar and output type Digital. ifm lists robust stainless steel housing for use in the food and beverage industry, hygienic, flush design and resistant to high-pressure cleaning with aggressive cleaning agents among its features.
- Pressure Reading Type: Relative
- Pressure range: -0.0124bar to 0.25bar
- Accuracy: ± 0.2 %
- Output Type: Digital
- Communication Protocol: IO-LINK
- Detailed Description
- Specifications
- Features
- Downloads
Hygienic and flush design
Resistant to high-pressure cleaning with aggressive cleaning agents
High temperature resistance and high protection rating
Programmable analogue and switching output
Convenient operation via buttons or parameter setting via IO-Link
| Brand | ifm |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -0.0124bar |
| Maximum Pressure Reading | 0.25bar |
| Accuracy | ± 0.2 % |
| Output Type | Digital |
| Communication Protocol | IO-LINK |
| Series | PI |
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
- Programmable analog and switching output
