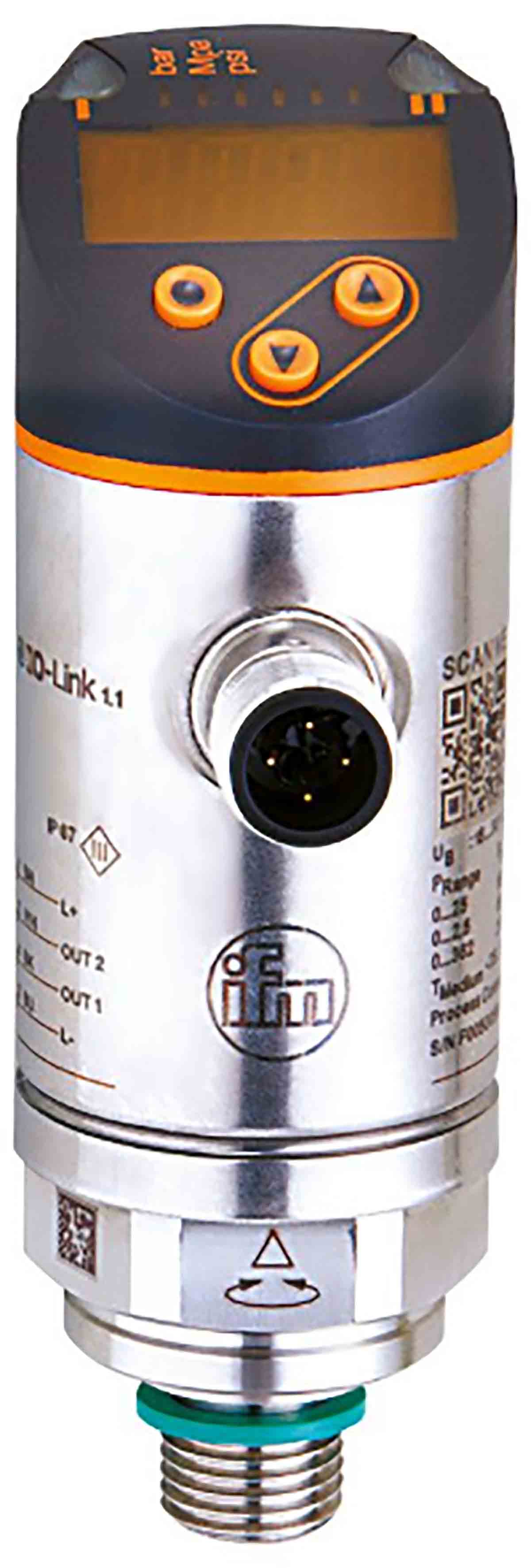

Name: ifm PN2599, Pressure Sensor, -1bar Min, 1bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading
Brand: ifm
SKU: PN2599
Availability: OutOfStock

ifm PN2599, Pressure Sensor, -1bar Min, 1bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PN2599, Pressure Sensor, -1bar Min, 1bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading

Part Number : PN2599

Availability: Sold out

Detailed Description
Specifications
Downloads

ifm electronic PN2xxx Series Pressure Sensors

ifm electronic PN 2xxx series pressure sensors offers a flexible design that allows the sensor to rotate in any direction once fitted. With selectable dual switched NC/NO outputs or a single switched output and a scalable analogue output. The PN pressure sensors continuously evaluate and show system pressure on a large bright 4-digit alphanumeric display. The display can be switched from the indication of “red” to an alternating indication of “red - green”, highlighting switching states.

Features And Benefits

IO-Link communication
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67

Pressure Sensors With Electronic Display

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	-1bar
Maximum Pressure Reading	1bar
Accuracy	<±0.4 %
Output Type	Analogue + PNP-NO/NC Programmable
Media Measured	Fluid
Process Connection	G1/4
Analogue Output	0 → 10 V, 4 → 20 mA
Electrical Connection	M12 Connector
Communication Protocol	IO-LINK
Response Time	<1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms
Maximum Current	250 mA
Supply Voltage	18 → 30 V dc
Interface	IO-Link
Housing Material	PBT GF20, PBT+PC GF30, PC, Stainless Steel
IP Rating	IP65, IP67
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

ifm PN2599, Pressure Sensor, -1bar Min, 1bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading

DOWNLOAD CATALOG

PN2599 ifm electronic PN Pressure Sensors 0900766b8154636c
