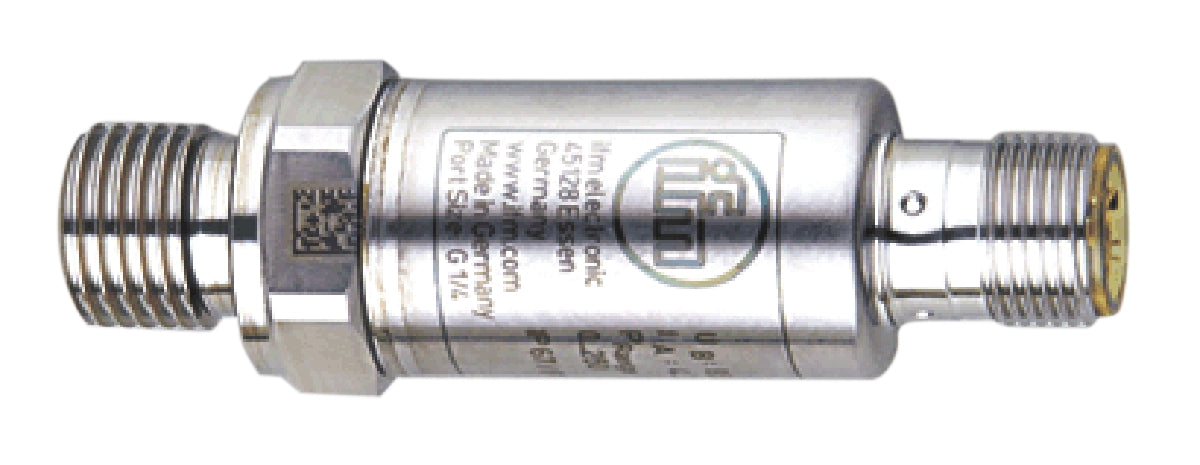

Name: ifm PU5443, Pressure Sensor, 0bar Min, 40bar Max, Analogue Output, Relative Reading
Brand: ifm
SKU: PU5443
Availability: OutOfStock

ifm PU5443, Pressure Sensor, 0bar Min, 40bar Max, Analogue Output, Relative Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PU5443, Pressure Sensor, 0bar Min, 40bar Max, Analogue Output, Relative Reading

Part Number : PU5443

Availability: Sold out

Detailed Description
Specifications
Downloads

PT54 & PU5 IFM Pressure Sensors

This range of IFM electronic pressure sensors are suitable for the detection of relative pressure liquids and gases of the fluid group 2 (according to Article 9 of the Pressure Equipment Directive). The sensors are available with different pressure ratings and measuring ranges to suit a number of industrial applications.

IP 67 / IP 69K
Analogue output
0-10 V analogue
Reverse polarity protection
Overload Protection
Short-circuit proof

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	40bar
Accuracy	±0.5 %
Output Type	Analogue
Media Measured	Gas, Liquid
Process Connection	G1/4
Electrical Connection	M12 Connector
Analogue Output	0 → 10 V
Response Time	1 ms
Supply Voltage	16 → 36 V dc
Housing Material	Stainless Steel
IP Rating	IP67, IP69K
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+90°C
