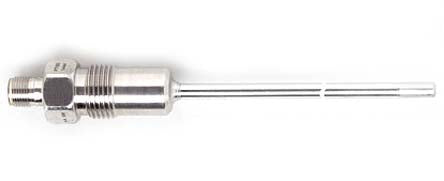

ifm TM4591 | RTD Sensor | G1/2, +150°C

Name: ifm TM4591 | RTD Sensor | G1/2, +150°C
Brand: ifm
SKU: TM4591
Availability: InStock

Part Number : TM4591

The ifm TM4591 is a rtd sensor with process connection G1/2, sensor type PT100 and probe length 20mm. ifm lists precise temperature measurement in containers, tanks and pipes, for the connection to an evaluation unit and very short response time for use in processes with fast temperature fluctuations among its features.

Sensor Type: PT100
Probe Length: 20mm
Probe Diameter: 6mm
Maximum Temperature Sensed: +150°C
Termination Type: M12 Connector
Probe Material: Stainless Steel
Process Connection: G1/2
Number Of Wires: 4

Availability: low stock

Detailed Description
Specifications
Features
Downloads

ifm Electronic TM/TT Series Temperature Transmitter

Ifm Electronic TM/TT series temperature probe sensors ensure very precise temperature measurement using a Pt100 element. The TM/TT sensors feature a thin sensor tip that results in an extremely fast response time.

Features and Benefits

Pt100 sensor element
Fast response time
High grade 316 stainless steel
IP69K Rated
High pressure resistance

Brand	ifm
Sensor Type	PT100
Probe Length	20mm
Probe Diameter	6mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+150°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Process Connection	G1/2
Number Of Wires	4
Response Time	3 s

Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Very short response time for use in processes with fast temperature fluctuations
Hygienic design for the requirements of the food and beverage industry
Variable process connection using adapters
