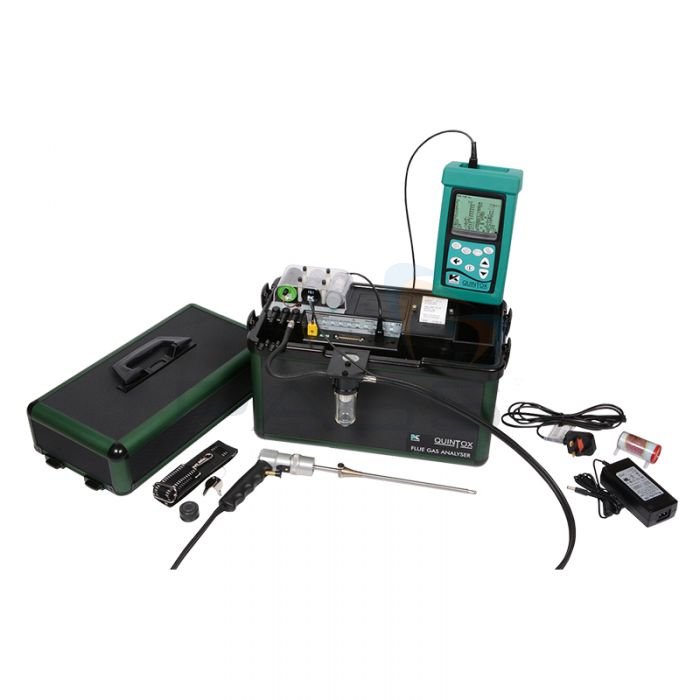

Kane 9206 Quintox | Flue Gas Analyser & Emissions Monitor
The Kane 9206 Quintox Flue Gas Analyzer & Emissions Monitor is a cost-effective and adaptable system for monitoring flue emissions. TÜV SUD has independently tested it to EN50379.
This fully customizable flue gas analyzer and monitoring system can be configured to meet the needs of the user by adding optional sensors, probes, and upgrades. Please call for more information or visit the 'Configuration' section.
The Kane 9206 Quintox Flue Gas Analyzer & Emissions Monitor measures flue gases emitted by a variety of fuels, including natural gas, butane, propane, LPG, 28 sec oil, 35 sec oil, wood pellets, user fuel, and heavy oil. It monitors hydrocarbons, carbon monoxide, carbon dioxide, and other flue gases using electrochemical sensors and infrared technology.

Free UAE shipping available
- Specifications
- Features
- Downloads
Range | O2 0-25% CO (H2 Compensated) 0-10000ppm CO2 (calculated) 0-20% Temperature 0-1100°C Pressure 0-150 mbar Efficiency 1-100% |
The main purge refreshes the sensors during long-term monitoring
The main purge prevents the sensors from becoming over-ranged
The main purge allows the sensors to be zeroed without withdrawing the probe from the flue pipe
Active Flow Control: compensates for pressure fluctuations and filter blocking by adjusting the pump speed thereby maintaining the sample gas flow
User-selectable standard fuels by country
Can support user-defined ‘special’ fuels
User-selectable languages
View up to fifteen lines of text/ data via the graphical display
Save up to 64 000 tests to the internal memory
GPS location
Integrated printer for producing reports quickly on-site
OPTIONAL IR printer for creating reports even when working away from the base unit
Free KANE LIVE software for PC and Android for monitoring results remotely and in real-time
View full reports via the KANE LIVE app
Send reports to print using the free ‘Printer App for Android’
Connect the Kane 9206 to a PC wirelessly or via USB
The handset is connected to the base unit via a wireless link
A completely configurable, comprehensive and cost-effective flue emissions monitoring system
An affordable and adaptable flue emissions monitoring system
Independently tested by TÜV SUD to EN50379
Completely customisable: can be configured to meet the user’s requirements via the addition of optional sensors, probes and upgrades (please call for details and see the ‘Configuration’ section)
Suitable for measuring flue gases emitted by natural gas, butane, propane, LPG, 28 sec oil, 35 sec oil, wood pellets, user fuel and heavy oil
Combines electrochemical sensors with infrared technology to monitor hydrocarbons, CO, CO₂ and other flue gases
Can accommodate up to five OPTIONAL electrochemical sensors: carbon monoxide, carbon dioxide, nitric oxide, sulphur dioxide, hydrogen sulphide and oxygen
Measures O₂ (0-25%) and H₂ Compensated CO (0-4000ppm) as standard
Measures pressure (0-150 mbar), efficiency (0-100%), and temperature (0-1100°C) as standard
Calculates CO₂ (0-20%) and differential pressure with pitot flow as standard
