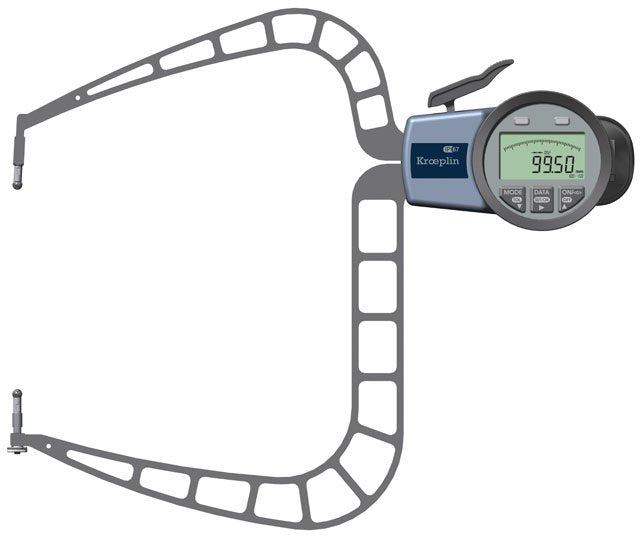

Kroeplin K4150, 100 - 150 mm, DIGITAL EXTERNAL MEASURING GAUGE FOR GROOVES AND THICKNESS MEASUREMENT
Caliper gauges are extremely adaptable tools that may be used to measure grooves and thickness over a wide range of distances, depending on the type. Tube diameters and thicknesses, groove thicknesses, and other difficult-to-measure outside parameters can all be accurately measured with an external tube thickness gauge. IP67 protection prevents dust penetration and protects against temporary water immersion; allows usage in situations with cutting oil, dust, and other contaminants. The thickness gage's spring-loaded lever makes it easy to use in tight locations, and the operating buttons allow quick access to features and measurements. Measurements are displayed on a simple LCD panel.
- Specifications
- Features
- Downloads
| Application | External measurement |
| Brand | Kroeplin |
| Display | Digital |
| Max. permissible errors G | 0.08 mm |
| Measuring depth max. L | 169 mm |
| Measuring Units | Millimetre / Inch |
| Model Number | K4150 |
| Protection | IP67 |
| Range | 100 - 150 mm |
| Repeatability limit r | 0.06 mm |
| Resolution | 0.02 mm |
| Weight | 530 g |
DIGITAL EXTERNAL MEASURING GAUGE
FOR GROOVES AND THICKNESS MEASUREMENT
With IP 67 Protection
