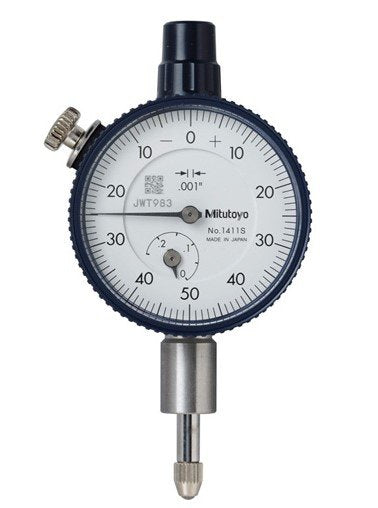

Mitutoyo 1411F | Dial Indicator | Accuracy ±0.001 inch | Graduation 0.001 inch | Range 0 to 1 inch
A precision measuring device used in several sectors to guarantee accurate measurements is the Mitutoyo 1411F Dial Indicator. It includes a large, easily seen dial with a resolution of 0.01mm, which allows for accurate readings. This indicator provides flexibility with a moving distance of 1mm and a measuring range of 0-10mm. Its dependability and durability are ensured by the use of premium materials in its construction. Professionals in the manufacturing, engineering, and quality control industries favor the MITUTOYO 1411F Dial Indicator because of its smooth motion and reliable accuracy.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.001 inch |
Dial Reading | 0.001 inch per revolution |
Diameter | Bezel: 2-1/4 inch |
Graduation | 0.001 inch |
Measuring range | 0-1 inch |
Model Number | 1411F |
Stem Dia | 3/8 inch |
Type | Dial Indicator |
Weight | 181 g |
- Measuring Range: 0-1 inch – Ideal for measuring small dimensional changes with precision.
- High Accuracy: ±0.001 inch – Offers highly accurate measurements for precision tasks.
- Graduation: 0.001 inch – Fine graduations allow for precise and detailed measurements.
- Easy-to-Read Dial: Large dial face with clear numerals for quick and error-free readings.
- Shock-Proof Design: Built to withstand impacts, ensuring durability and reliable performance.
- Reversible Measuring Probe: Enables both inward and outward measurements for versatile use.
- Durable Construction: Sturdy, high-quality materials ensure long-lasting reliability in demanding environments.
- Interchangeable Contact Points: Provides flexibility for different measuring tasks by swapping tips (ball, flat, pointed, etc.).
