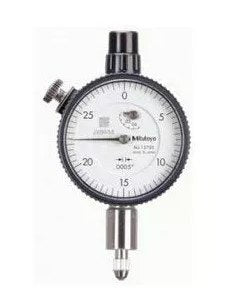

Mitutoyo 1803F-10 | Dial Indicator | Range 0 to 10mm | Graduation 0.01mm | Accuracy ±0.01mm
A very accurate measuring device that is frequently used in many different industries for accurate and reliable measurements is the Mitutoyo 1803F-10 Dial Indicator. It is renowned for its robust construction, with a stainless steel casing that provides superior defense against the weather and ensures enduring functionality. Accurate readings are made possible by the indicator's big, clearly legible dial with clear markings. It is appropriate for a broad range of applications due to its adaptable design, which enables it to be utilized in both horizontal and vertical positions. Professionals that need exact measures for their job rely on the Mitutoyo 1803F-10 Dial Indicator because of its remarkable accuracy and skillful construction.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.0001 inch |
Body Material | Stainless steel |
Colour | Dial: White |
Contact point | Carbide tipped |
Dial Reading | 0-5-0 |
Diameter | Dial: 40mm |
Features | Shock-proof, Anti-magnetic, and Corrosion-resistant |
Graduation | 0.0001 inch |
Length | Stem: 10mm |
Measuring Force | 1.4N or less |
Measuring range | 0-10mm |
Range | 0.025 inch |
Stem Dia | 8mm |
Type | Bezel: Rotating |
Type | Dial Indicator |
Weight | 150g |
- Measuring Range: 0-10mm – The indicator measures within this range, ideal for medium-sized objects.
- Graduation: 0.01mm – Provides precise measurement with a resolution of 0.01mm for high accuracy.
- Accuracy: ±0.01mm – Ensures reliable, consistent results with minimal error.
- Shockproof Design: Built to withstand moderate shocks, making it suitable for regular industrial environments.
- Clear Dial Display: The easy-to-read dial helps in quick, accurate readings, reducing measurement errors.
- Robust Construction: Made from durable materials for longevity and reliability in various applications.
