Mitutoyo 511-756-20 | Bore Gauge | 2-Point Inside Measuring | Series 511 | Graduation 0.0001 inch | Accuracy 2 µm | Range 10 to 16 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 511-756-20

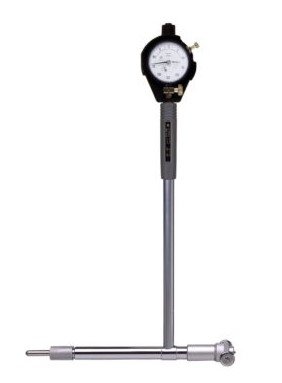

The Mitutoyo 511-756-20 Bore Gauge is a high-precision measuring instrument designed for 2-point inside measurement applications. With a graduation of 0.0001 inch, it provides exceptional resolution for accurate bore measurements. The gauge offers an impressive accuracy of 2 µm, ensuring reliable results in critical measurements. Its range of 10 to 16 inches makes it versatile for a variety of bore sizes. Ideal for use in industrial and manufacturing settings, it guarantees precise measurements in both large and small bore applications. The Series 511 is built to last, providing durability and long-term performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	2 µm
Digital/Analog	Analog
Graduation	0.0001 Inch
Inch-Metric	Inch
Indicator No.	2923AB-10
Measuring depth max. L	10 Inch
Range	10 - 16 Inch
Repeatability	0.5 µm
Series	511
Stroke	18 - 60 mm: 1.2 mm, 50 - 400 mm: 1.6 mm
Type	Bore Gauge
Weight	945 g

2-Point Inside Measuring for accurate bore measurements.
Graduation of 0.0001 inch, providing exceptional resolution and precision.
Accuracy of 2 µm for highly reliable and consistent measurement results.
Range of 10 to 16 inches, making it versatile for a wide variety of bore sizes.
Series 511 design offers durability and precision for industrial and manufacturing applications.
Ideal for large and small bore measurements, ensuring high performance across different ranges.
