Part Number : 513-414-10A

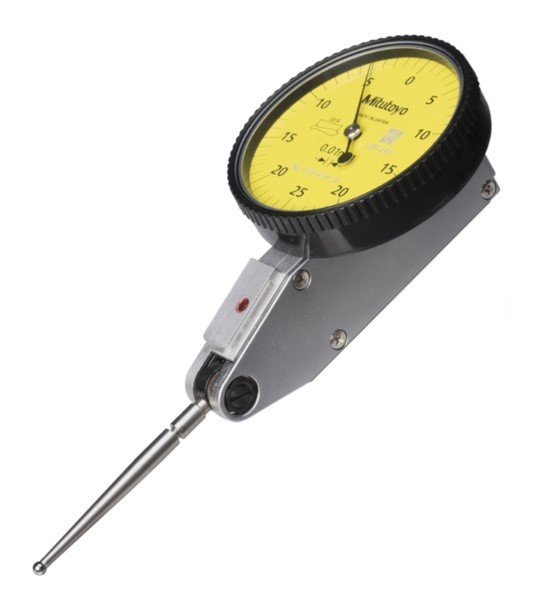

The Mitutoyo 513-414-10A is a precision horizontal dial test indicator from Series 513. It features both 4 mm and 8 mm stems for flexible and secure mounting in various setups. With a 0.5 mm measuring range and 0.01 mm graduation, it ensures fine, accurate measurements. Delivered as a Plus Set, it includes essential accessories for expanded functionality. Ideal for toolrooms, inspection setups, and surface alignment tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	4 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring range	10 µm
Range	0.5 mm
Repeatability	3 µm
Series	513
Size	Stem Size : 4/8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm for highly accurate and precise measurements.
Range: 0.5 mm, suitable for a variety of fine measurement tasks.
Dial Reading: 0–25–0, providing easy and clear interpretation of readings.
Measuring Force: 0.3 N or less, minimizing the impact on the measured surface.
Contact Point: Carbide, offering durability and wear resistance.
Stem Size: Includes both 4 mm and 8 mm stems, providing flexibility for different setups.
