Part Number : 513-425-10A

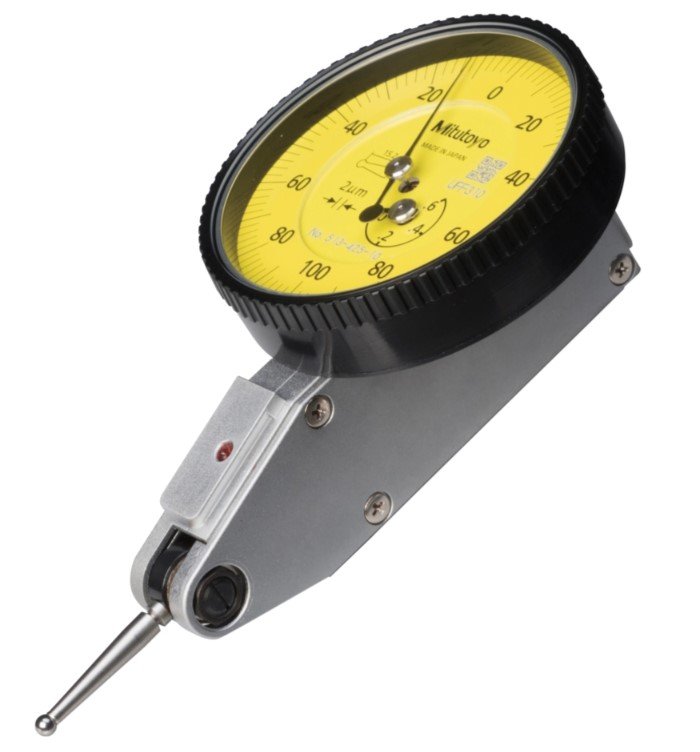

The Mitutoyo 513-425-10A is a horizontal dial test indicator from Series 513, designed for precision measurement tasks. It comes as a Plus Set, offering additional accessories for versatile setup options. With a 0.6 mm measuring range and 0.002 mm graduation, it ensures highly accurate, repeatable measurements. Includes both 4 mm and 8 mm stem options, enhancing compatibility with various holders and machines. Perfect for fine-tolerance inspection, tooling setups, and precision machining applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Digital/Analog	Analog
Graduation	0.002 mm
Hysteresis	4 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring range	7 µm
Range	0.6 mm
Repeatability	1 µm
Series	513
Set Type	Plus Set
Size	Stem Size : 8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.002 mm, providing high-resolution measurements.
Range: 0.6 mm, suitable for precise displacement measurements.
Dial Reading: 0–100–0, facilitating easy interpretation of measurements.
Measuring Force: 0.4 N or less, ensuring minimal impact on the measured surface.
Contact Point: Carbide, offering durability and resistance to wear.
Included Accessories: Comes with an 8 mm plain stem, providing flexibility for various setups.
