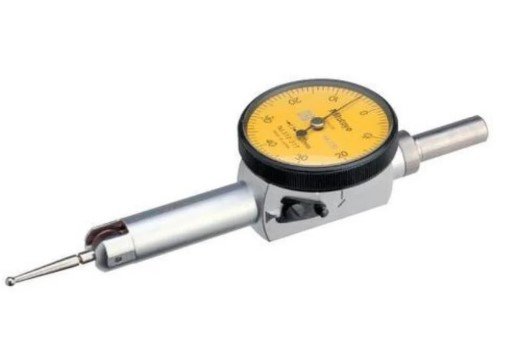

Mitutoyo 513-517E | Dial Test Indicator | Graduation 0.01mm | Accuracy 8¼m | Range 0.8mm
The Mitutoyo 513-517E Dial Test Indicator offers high precision for small-scale measurements. With a graduation of 0.01mm and an accuracy of ±8μm, it delivers reliable and detailed readings. The 0.8mm range is ideal for measuring minute variations in parts and surfaces. Its compact design ensures easy handling and visibility in tight spaces. Built with Mitutoyo’s renowned craftsmanship, it provides consistent, long-lasting performance. Perfect for precision inspection tasks in mechanical and manufacturing settings.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-81/4m |
Dial Reading | 0-40-0 |
Graduation | 0.01mm |
Measurement range | 0.8mm |
Measuring Force | 0.3N or less |
Type | Dial Test Indicator |
- Graduation: 0.01mm for fine, detailed readings.
- Accuracy: ±8μm for highly precise measurements.
- Measuring Range: 0.8mm, ideal for small-scale inspections.
- Compact Design: Easy to handle and use in confined spaces.
- Durability: Manufactured for long-lasting, reliable performance.
- Versatile: Suitable for mechanical measurements and quality control.
