Part Number : 543-507

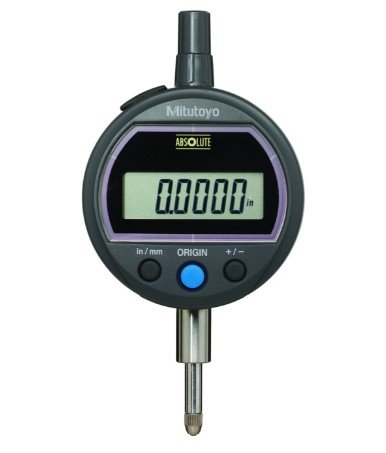

The Mitutoyo 543-507 Digital Solar Indicator from Series 543 (ID-SS) is a compact, high-precision measuring tool designed to meet ANSI/AGD standards. It offers a measuring range of 0.5 inch with a fine digital resolution of 0.0005 inch, making it ideal for detailed inspection work. The indicator has a hysteresis of 0.001 inch, providing reliable repeatability in various applications. Powered by solar energy, it operates effectively under normal lighting conditions, removing the need for battery replacement. With a stem diameter of 9.52 mm and a lightweight design at 140 g, it's easy to integrate into various setups for accurate, dependable measurements.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 9 mm
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.001 Inch or 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
ON/OFF	Yes
Power Supply	Solar cell usable from 40 Lux illumination
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0005 Inch or 0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Solar Indicator
Weight	140 g

Measurement Range: 0.5 inch – suitable for precise, short-range measurements
Resolution: 0.0005 inch – provides clear, detailed digital readings
Hysteresis: 0.001 inch – ensures stable and repeatable measurement performance
Power Source: Solar-powered – works efficiently under normal lighting conditions
Design Standard: ANSI/AGD Type – compatible with standard indicator holders
Compact & Lightweight: 9.52 mm stem diameter and 140 g weight – ideal for versatile use
