Part Number : 547-212A

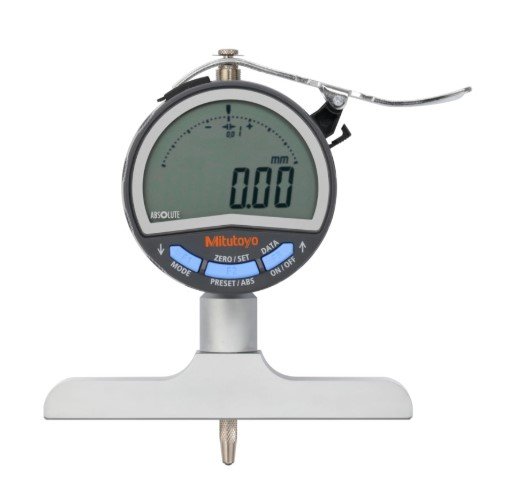

The Mitutoyo 547-212A Digital Depth Gauge (Series 547) offers precise digital measurements with a step of 0.01 mm. It features a 12.7 mm stroke, making it versatile for various depth measurements. With an accuracy of ± 20 µm, it ensures highly reliable and precise results. The digital display provides clear, easy-to-read measurements, enhancing convenience during use. Weighing 330 g, it is slightly heavier but still comfortable for handling. This tool is ideal for professionals seeking accurate depth measurement solutions in precision applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 20 µm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Base	5 µm
Battery Life	Approx. 7000 hours
Calculation function	Yes
Contact point	Carbide ball
Data hold function	Yes
Digital step	0.01 mm
GO/+/-NG judgement	Yes
Inch-Metric	Metric
Lock function	Yes
Max/Min	Range: Yes
Measuring Force	¢°¤ 1.5 N
ON/OFF	Yes
Power Supply	1 battery CR2032 (3V)
PRESET	Yes
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	12.7 mm
Thread type	M2.5x0.45
Type	Digital Depth Gauge
Weight	330 g
ZERO/ABS	Yes

Precise Digital Readings: Provides digital measurements with a step of 0.01 mm for high accuracy.
Stroke: 12.7 mm stroke allows for versatile measurement across a range of applications.
High Accuracy: Ensures reliable results with an accuracy of ± 20 µm.
Easy-to-Read Display: Digital display offers clear, straightforward readings for convenience.
Weight: Weighs 330 g, offering a solid feel and comfortable handling.
Ideal for Professionals: Designed for precision depth measurements in quality control and inspection tasks.
