Part Number : 547-252A

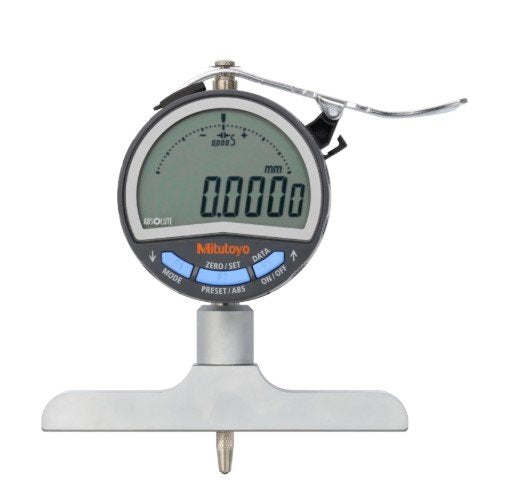

The Mitutoyo 547-252A Digital Depth Gauge (Series 547) provides precise digital measurements with a step of 0.001 mm. It features a 12.7 mm stroke, offering flexibility for various depth measurements. With an impressive accuracy of ± 5 µm, it ensures highly reliable results. The digital display offers clear and easy-to-read measurements. Weighing 335 g, it provides a solid feel and comfort during use. This depth gauge is ideal for professionals who require exceptional precision in quality control and inspection applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 5 µm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Base	2 µm
Battery Life	Approx. 7000 hours
Calculation function	Yes
Contact point	Carbide ball
Data hold function	Yes
Digital step	0.001 mm
Inch-Metric	Metric
Lock function	Yes
Max/Min	Range : Yes
Measuring Force	¢°¤ 1.5 N
ON/OFF	Yes
Power Supply	1 battery CR2032 (3V)
PRESET	Yes
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	12.7 mm
Thread type	M2.5x0.45
Type	Digital Depth Gauge
Weight	335 g
ZERO/ABS	Yes

Precise Digital Readings: Provides measurements with a step of 0.001 mm for high accuracy.
Stroke: 12.7 mm stroke allows for versatile depth measurements in various tasks.
High Accuracy: Features an accuracy of ± 5 µm, ensuring reliable and precise results.
Clear Digital Display: The digital display offers easy-to-read measurements for convenience.
Weight: Weighs 335 g, providing a solid and comfortable feel during use.
Professional Use: Ideal for quality control, precision inspections, and depth measurement applications.
