Mitutoyo 559-524-34 | NC-Linear Scale AT1344-100-H_10nm | Mitsubishi Interface Full Duplex | Resolution 10 ¼m

Name: Mitutoyo 559-524-34 | NC-Linear Scale AT1344-100-H_10nm | Mitsubishi Interface Full Duplex | Resolution 10 ¼m
Brand: Mitutoyo
SKU: 559-524-34
Availability: InStock

Part Number : 559-524-34

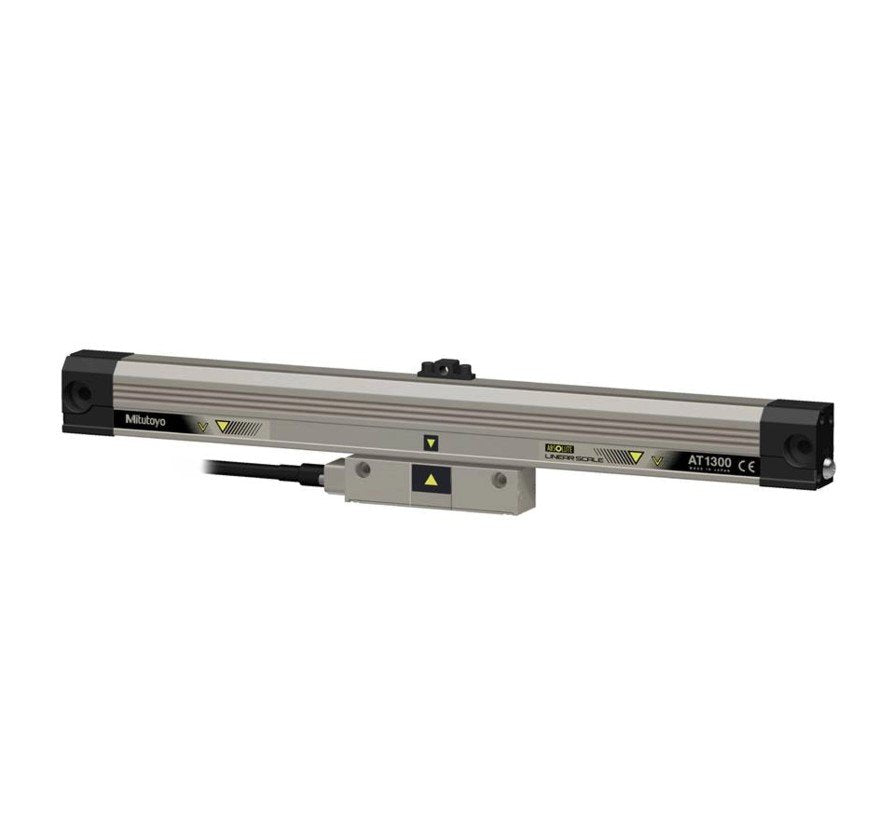

The Mitutoyo 559-524-34 (AT1344-100-H_10nm) is a high-precision NC-linear scale designed for industrial CNC and metrology applications. It features a 10 nm resolution, making it ideal for highly accurate position detection. The scale is equipped with a Mitsubishi full-duplex interface, ensuring reliable high-speed data transmission. Built for durability, it offers strong resistance to oil, dust, and vibration. It is widely used in high-end machining centers and coordinate measuring machines (CMMs).

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	Mitsubishi Interface Full Duplex
Length	Signal Cable: Maximum 29 m (signal cable + feedback cable)
Max. Response Speed	180 m/min
Power Supply	5 VDC +/- 10%
Resolution	10 1/4m
Series	ABS AT1300-H Series
Type	H-Type

10 nm (0.01 μm) resolution: Supports ultra-precise positioning and measurement.
High repeatability and minimal interpolation error for fine-scale machining.
Enables real-time bi-directional communication.
Optimized for integration with Mitsubishi CNC systems and controllers.
Rigid construction ensures resistance to thermal expansion, vibration, and mechanical stress.
Sealed structure provides resistance to coolant, oil, dust, and chips.
Designed for seamless integration with Mitsubishi Electric servo systems and controllers.
Compatible with advanced feedback systems and automation platforms.
Ideal for high-end CNC machines, grinders, lathe systems, and CMMs requiring high-resolution feedback.
Used in industries where nanometer-level accuracy is critical (e.g., aerospace, semiconductor, precision tooling).
