Mitutoyo 810-401-13-ASET2 | Manual Automatic Micro Vickers Hardness Testing Machine | HM-210 A-Type Set | Double Indentershaft Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | Mass 42 kg

Name: Mitutoyo 810-401-13-ASET2 | Manual Automatic Micro Vickers Hardness Testing Machine | HM-210 A-Type Set | Double Indentershaft Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | Mass 42 kg
Brand: Mitutoyo
SKU: 810-401-13-ASET2
Availability: InStock

Part Number : 810-401-13-ASET2

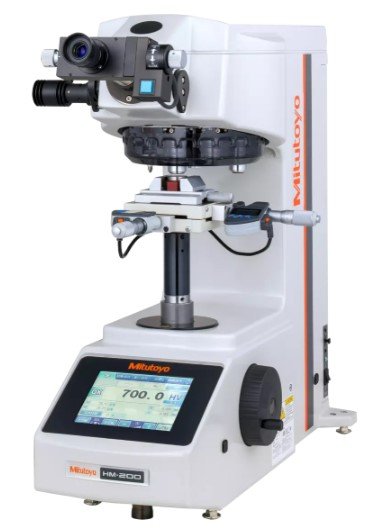

The Mitutoyo 810-401-13-ASET2 is a Manual/Automatic Micro Vickers Hardness Testing Machine featuring the HM-210 A-Type Set with a Double Indenter Shaft system. It offers flexible operation modes for enhanced efficiency in precision hardness testing. Designed to perform reliably in temperatures from 5 to 40°C and under 5 Hz vibration conditions, it ensures stable and accurate results. With a mass of 42 kg, it provides solid structure and durability for lab environments. Ideal for applications needing high-throughput testing and precise microhardness measurement.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Dimensions	External dimensions WxDxH: 341x670x581 mm
Light Source	Light source illumination unit : White LED
Mass (main unit)	42 kg
Operation temperature	5-40
Optical system	Infinitely corrected
POWER CONSUMPTION	31
Power Supply	AC100 -240V Auto-selection
Relative Humidity	80% or lower without condensation
Series	810
Standard	Standard objective lenses : MH Plan 10x and 50x
Type	Manual Automatic Micro Vickers Hardness Testing Machine
Vibration	5Hz or lower

Manual and Automatic Operation
Offers both manual and semi-automatic functionality, enabling flexible testing workflows suitable for both low and high sample volumes. Ideal for labs needing a combination of user control and automation efficiency.
Double Indenter Shaft System
Equipped with a dual indenter shaft mechanism, allowing users to easily switch between two different indenters (e.g., for different test loads or materials), minimizing downtime and enhancing testing versatility.
High-Accuracy Micro Vickers Testing
Delivers consistent and precise hardness measurements on small, thin, or delicate samples, making it suitable for microstructures, coatings, and surface treatments.
Environmental Stability and Vibration Resistance
Operates reliably within a temperature range of 5 to 40°C and resists external interference with tolerance to vibration frequencies up to 5Hz, ensuring test accuracy even in less controlled environments.
Durable and Stable Construction
Weighing 42 kg, the unit provides excellent mechanical stability during testing, reducing the impact of external movements and enhancing measurement consistency over time.
