Name: Mitutoyo 810-406-13-ASET2 | Manual Micro Vickers Hardness Testing Machine | HM-220 A-Type Set | Double Indentershaft Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | Mass 42 kg
Brand: Mitutoyo
SKU: 810-406-13-ASET2
Availability: InStock

Part Number : 810-406-13-ASET2

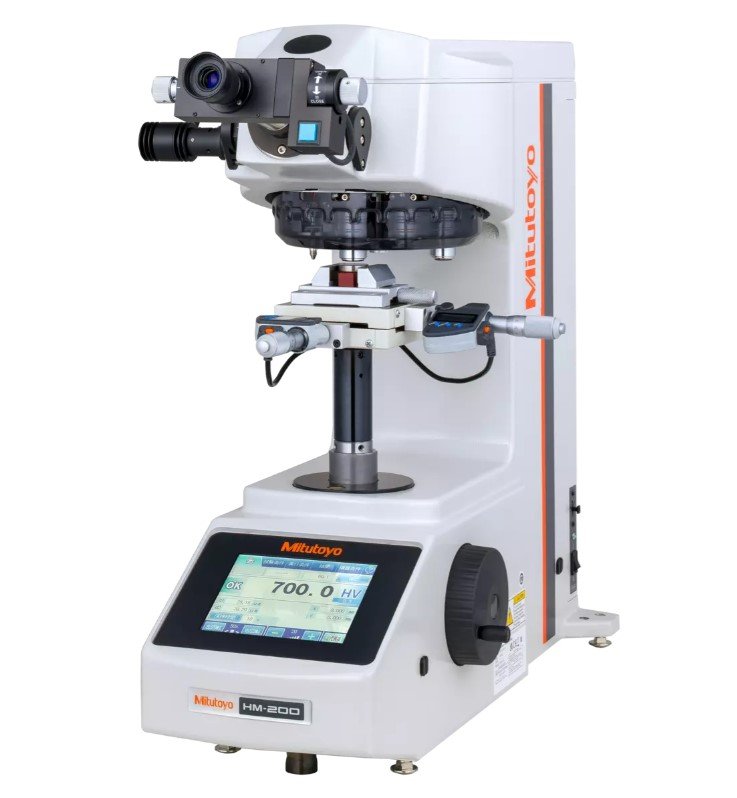

The Mitutoyo 810-406-13-ASET2 HM-220 A-Type Set is a high-precision manual Micro Vickers hardness testing machine designed for detailed microhardness measurements. This model features a double indenter shaft, allowing for quick switching between two indenters without the need for manual intervention. It operates effectively in standard laboratory conditions (5 to 40°C) and low-vibration environments (≤5 Hz). With a mass of 42 kg, it offers excellent stability during testing. This unit is ideal for advanced materials analysis, quality control, and metallurgical research.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Dimensions	External dimensions WxDxH : 341x670x581 mm
Light Source	Light source illumination unit : White LED
Mass (main unit)	42 kg
Operation temperature	5-40
Optical system	Infinitely corrected
POWER CONSUMPTION	44
Power Supply	AC100 -240V Auto-selection
Relative Humidity	80% or lower without condensation
Series	810
Standard	Standard objective lenses : MH Plan 10x and 50x
Type	Manual Micro Vickers Hardness Testing Machine
Vibration	Frequency: 5Hz or lower

High-Precision Micro Vickers Testing: Enables accurate hardness measurements on micro-scale materials, coatings, and thin sections.
Double Indenter Shaft: Allows for quick switching between two indenters without manual intervention, enhancing testing efficiency.
Wide Load Range Compatibility: Supports a range of low test loads suitable for microhardness testing of metals, ceramics, and composites.
Durable and Stable Construction: Weighing 42 kg, it ensures vibration resistance and stable operation during sensitive measurements.
Temperature & Vibration Tolerance: Designed to operate in standard lab environments (5–40°C) with tolerance for vibrations up to 5 Hz.
Optical System with Fine Resolution: Includes high-quality optics for clear indentation visibility and accurate diagonal length measurement.
Data Output Compatibility: Allows integration with optional accessories for data capture and analysis (e.g., micrometers, analyzers).
Ergonomic, Compact Design: Space-saving layout optimized for benchtop use in labs and quality control departments.
