Mitutoyo ABS ST783AL | Linear Scale ST700 | Head 73 mm | Resolution 0.1 µm | Effective Length 100 mm

Name: Mitutoyo ABS ST783AL | Linear Scale ST700 | Head 73 mm | Resolution 0.1 µm | Effective Length 100 mm
Brand: Mitutoyo
SKU: ABS ST783AL
Availability: InStock

Part Number : ABS ST783AL

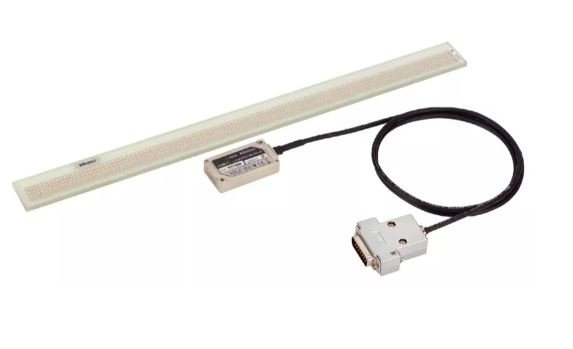

The Mitutoyo ABS ST783AL is a high-precision linear scale designed for accurate position detection in precision machinery. It features a head length of 73 mm and an effective measuring length of 100 mm, making it suitable for compact setups. The resolution is 0.1 µm, ensuring extremely fine measurement capability. Part of the ST700 series, it utilizes ABS (absolute) technology for instant position recognition upon startup. Ideal for demanding industrial and metrology applications requiring high accuracy and reliability.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Head Length	73 mm head
Length	Effective : 100 mm
Resolution	0.1 µm
System	Applicable System : Yaskawa Electric Corporation ‹†‘-llI Series
Type	Linear Scale

Ultra-High Precision Measurement
With a resolution of 0.1 µm (micrometer), the ST783AL delivers exceptional accuracy, making it ideal for applications such as high-end CNC machines, coordinate measuring machines (CMMs), and precision inspection equipment.
ABS (Absolute) Encoder System
The scale features Mitutoyo’s Absolute Encoder Technology, which eliminates the need for zero-setting after power-on. It remembers its position even after being turned off, improving efficiency and reducing setup time.
Compact and Space-Efficient Design
The sensor head is only 73 mm long, and the scale offers an effective measuring length of 100 mm, making it suitable for installations in compact mechanical layouts without compromising accuracy.
ST700 Series Integration
Fully compatible with the Mitutoyo ST700 series, this scale integrates seamlessly into digital readout systems and feedback loops, supporting advanced positioning and control functions in automated systems.
Robust and Reliable Construction
Built with industrial-grade materials, the ST783AL is designed to resist dust, vibration, and wear, ensuring long-term reliability and performance stability even in harsh manufacturing environments.
