Mitutoyo 950-318 | Digital Precision Level 360° with Data Output

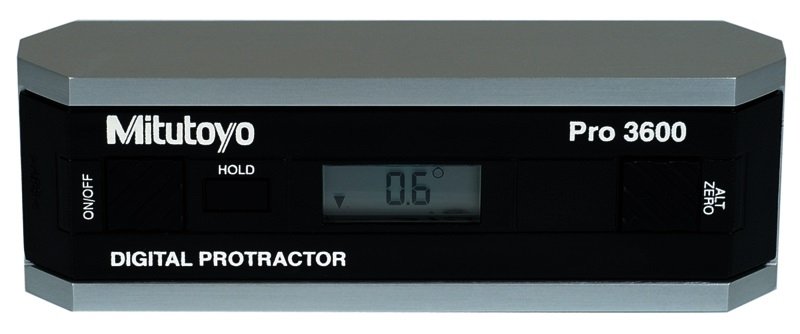

Name: Mitutoyo 950-318 | Digital Precision Level 360° with Data Output
Brand: Mitutoyo
SKU: 950-318
Availability: OutOfStock

Part Number : 950-318

This Digital Precision Level offers you the following benefits:

A new instrument for measuring flatness, squareness, and angularity has been designed.
• Aluminum frame with precision support surface for excellent rigidity and low weight.

You can measure flatness, squareness and angularity.
Precision support surfaces in aluminium frame provide you with high rigidity and low weight.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	ca. 500 hours
Data Output	Yes
Mass (main unit)	300 g
Max. permissible error (degrees)	0.05 (0 to 10) 0.1 (80 to 90) 0.2 (10 to 80)
Power	Standard battery (9 V) 6LR61
Range	360° (4 x 90°)
Repeatability (degrees)	0.05
Sensitivity (degrees)	0.01 (0 to 9.99) 0.1 (10 to 90)
