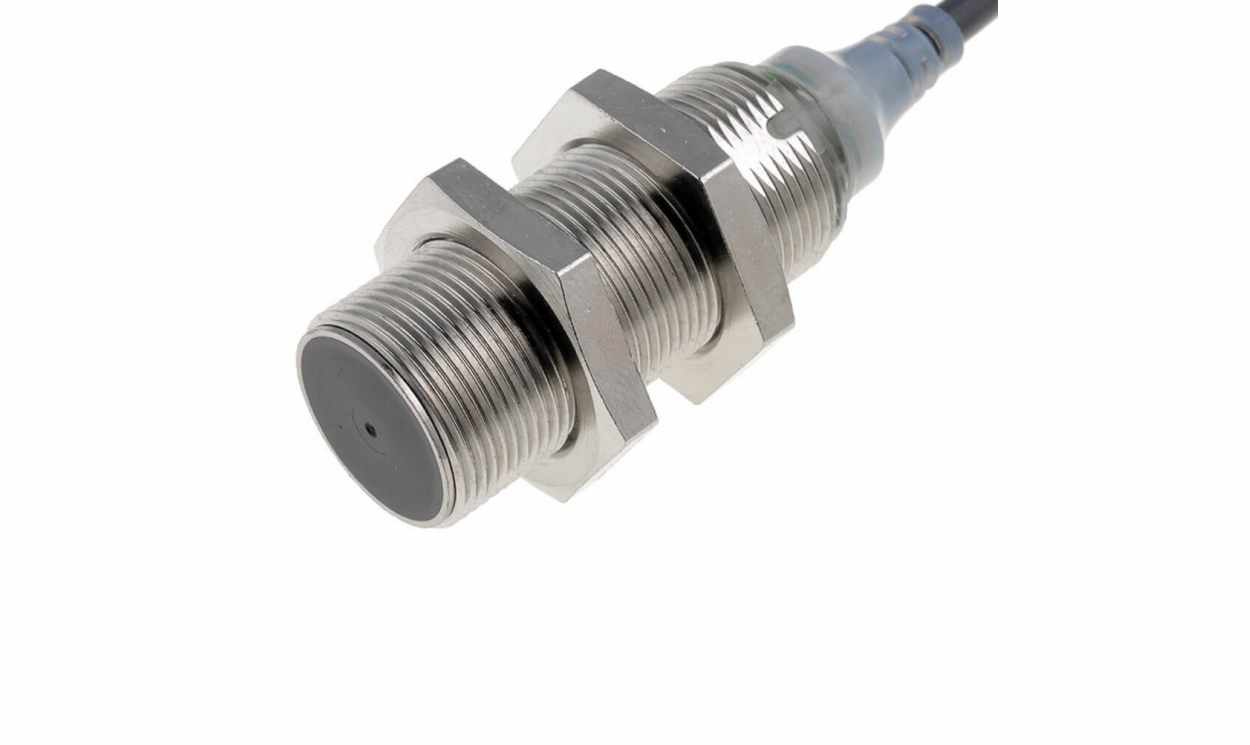

OMRON E2A-M18KS08-M5-B1 | Inductive Proximity Sensor | M18, 8 mm PNP NO, M8 Connector
Part Number : E2A-M18KS08-M5-B1
The OMRON E2A-M18KS08-M5-B1 is an M18 inductive proximity sensor with an 8 mm sensing distance, a PNP NO output and an M8 connector, operating from a 12 to 24 V DC supply.
- Flush mounting (shielded)
- Output: PNP NO, 200 mA switching current
- Supply: 12 to 24 V DC, max. 32 V
- Switching frequency: 500 Hz
- Protection: IP67
- Operating temperature: -40 °C to +70 °C
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The Omron E2A series proximity sensor having short body with cylindrical shape brass nickel material housing. This proximity sensor is shielded with 08 mm sensing distance. This sensor has NO operation with PNP output.
IP degree of protection is IP67
Operating temperature is -40°C to 70°C
Operating temperature is -40°C to 70°C
| Brand | Omron |
| Series | E2A |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 8 mm (0.315 in) |
| Output Function | NO |
| Connection Type | M8 |
| Supply Voltage | 12 → 24 V dc |
| Length | 59 mm (2.32 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | PNP |
| Mounting Type | Flush |
| Shielding | Shielded |
| Thread Size | M18 |
| Switching Current | 200 mA |
| Switching Frequency | 500 Hz |
| Maximum DC Voltage | 32V |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Maximum Switching Frequency | 500Hz |
OMRON E2A-M18KS08-M5-B1 | Inductive Proximity Sensor | M18, 8 mm PNP NO, M8 Connector
