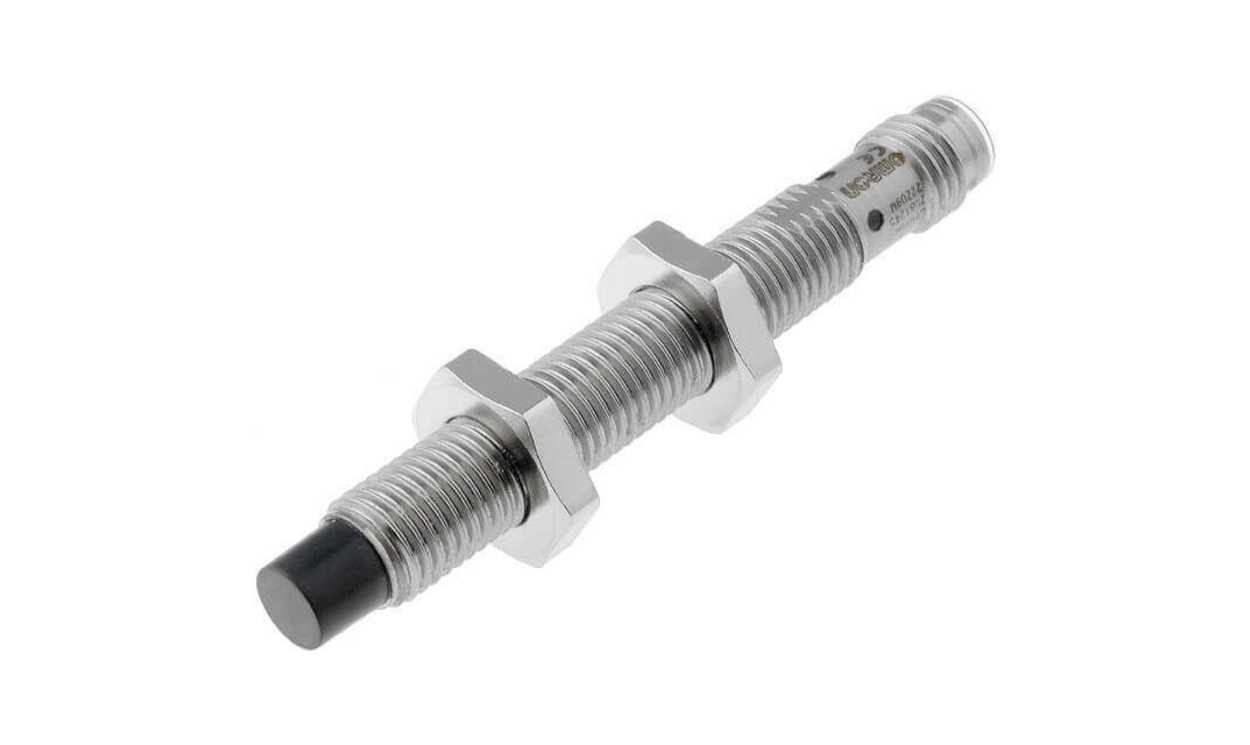

OMRON E2A-S08LN04-M5-B1 | Inductive Proximity Sensor | M8, 4 mm PNP NO, M8 Connector

Name: OMRON E2A-S08LN04-M5-B1 | Inductive Proximity Sensor | M8, 4 mm PNP NO, M8 Connector
Brand: OMRON
SKU: E2A-S08LN04-M5-B1
Availability: InStock

Part Number : E2A-S08LN04-M5-B1

The OMRON E2A-S08LN04-M5-B1 is an M8 inductive proximity sensor with a 4 mm sensing distance, a PNP NO output and an M8 connector, operating from a 12 to 24 V DC supply.

Non-flush mounting (unshielded), stainless steel housing
Output: PNP NO, 200 mA switching current
Supply: 12 to 24 V DC, max. 32 V
Protection: IP67 and IP69K
Operating temperature: -40 °C to +70 °C
Body length: 61 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2A Series Proximity Sensor, 12 to 24V DC Supply Voltage, IP67/IP69K - E2A-S08LN04-M5-B1

This proximity sensor is designed for accuracy in automation and industrial applications. As an inductive sensor, it detects metallic objects without physical contact, promoting efficiency and longevity. Its robust construction and versatile specifications make it suitable for environments requiring precision.

Features & Benefits

• PNP output supports integration with various control systems
• Maximum operating temperature of +70°C enhances application versatility
• Non-flush mounting allows for effective object detection

Applications

• Detecting metallic parts in machinery
• Automation in conveyor systems
• in harsh industrial environments
• Employed in robotics and material handling

What is the maximum detection range of this sensor?

The maximum detection range is 4mm, providing precise proximity sensing for metal objects.

How does the sensor perform in different temperatures?

It operates effectively within a temperature range of -40°C to +70°C, addressing varied industrial requirements.

What type of output does this sensor provide?

The output is a PNP type, allowing easy connection to control and automation systems.

What is the significance of the IP67 and IP69K ratings?

These ratings indicate strong protection against dust and water, making it suitable for challenging environments.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M8
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67, IP69K
Length	61mm
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Shielding	Unshielded
Switching Current	200 mA
Series	E2A

OMRON E2A-S08LN04-M5-B1 | Inductive Proximity Sensor | M8, 4 mm PNP NO, M8 Connector

DOWNLOAD CATALOG

E2A-S08LN04-M5-B1 Brochure - Inductive Proximity Sensors A700000012779280
