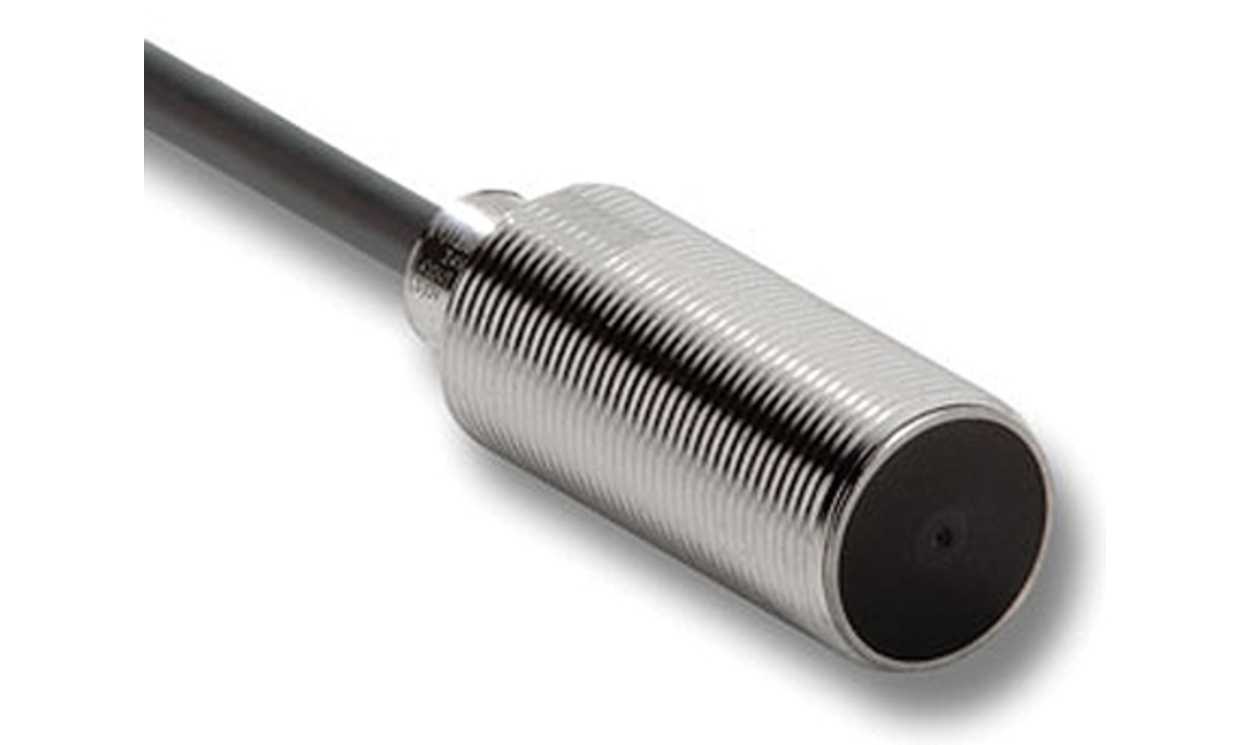

OMRON E2B-M18KN16-WP-C2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NC, 2 m Cable

Name: OMRON E2B-M18KN16-WP-C2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NC, 2 m Cable
Brand: OMRON
SKU: E2B-M18KN16-WP-C2 2M
Availability: InStock

Part Number : E2B-M18KN16-WP-C2 2M

With a sensing distance of 16 mm, the OMRON E2B-M18KN16-WP-C2 2M is an inductive threaded-barrel proximity sensor in an M18 housing. This version has an NPN normally closed (NC) output and a pre-wired 2 m cable. It is listed as a LITE model.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: non-flush, unshielded
Switching frequency: 400 Hz
Housing length: 36 mm (short body)
Housing material: nickel-plated brass

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, 16mm Detection Range, IP67 - E2B-M18KN16-WP-C2 2M

This inductive proximity sensor is a versatile device designed for industrial applications. Featuring a compact M18 threaded structure, the sensor provides a detection range of 16mm. Its robust brass body ensures durability, while the IP67 rating guarantees resistance to dust and moisture, making it suitable for a variety of environments.

Features & Benefits

• Switchable between normally open and normally closed operation
• Provides a 16mm sensing distance for reliable detection
• Designed for use in harsh conditions with an IP67 rating
• Features reverse polarity protection for enhanced safety
• Constructed from brass for durability and corrosion resistance
• Available as a pre-cabled option for easy installation

Applications

• Utilised in object detection and control
• Employed in assembly lines for precise positioning
• Ideal for packaging machinery to detect products
• Used in robotics for proximity sensing and interaction
• Suitable for conveyor systems where space is limited

What is the significance of the IP67 rating in this sensor?

The IP67 rating indicates that the sensor is fully protected against dust ingress and can withstand immersion in water up to 1 metre for 30 minutes, ensuring reliable operation in challenging environments.

How does the sensing range impact its application?

The 16mm detection range allows the sensor to effectively monitor small targets in tight spaces, making it suitable for various applications where other devices may be too large or ineffective.

What type of outputs does this sensor provide?

This model features an NPN output, which allows it to interface effectively with a range of electrical systems, particularly useful for industrial controls and automation processes.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	16 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	NPN
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	36mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Depth	16.4mm
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	400Hz
Shielding	Unshielded

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, NPN-NC, 2 m cable

OMRON E2B-M18KN16-WP-C2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NC, 2 m Cable

DOWNLOAD CATALOG

E2B-M18KN16-WP-C2 2M Brochure - Perfect for Your Specific Needs A700000013017909

E2B-M18KN16-WP-C2 2M Instruction Sheet - E2B Series A700000013018881
