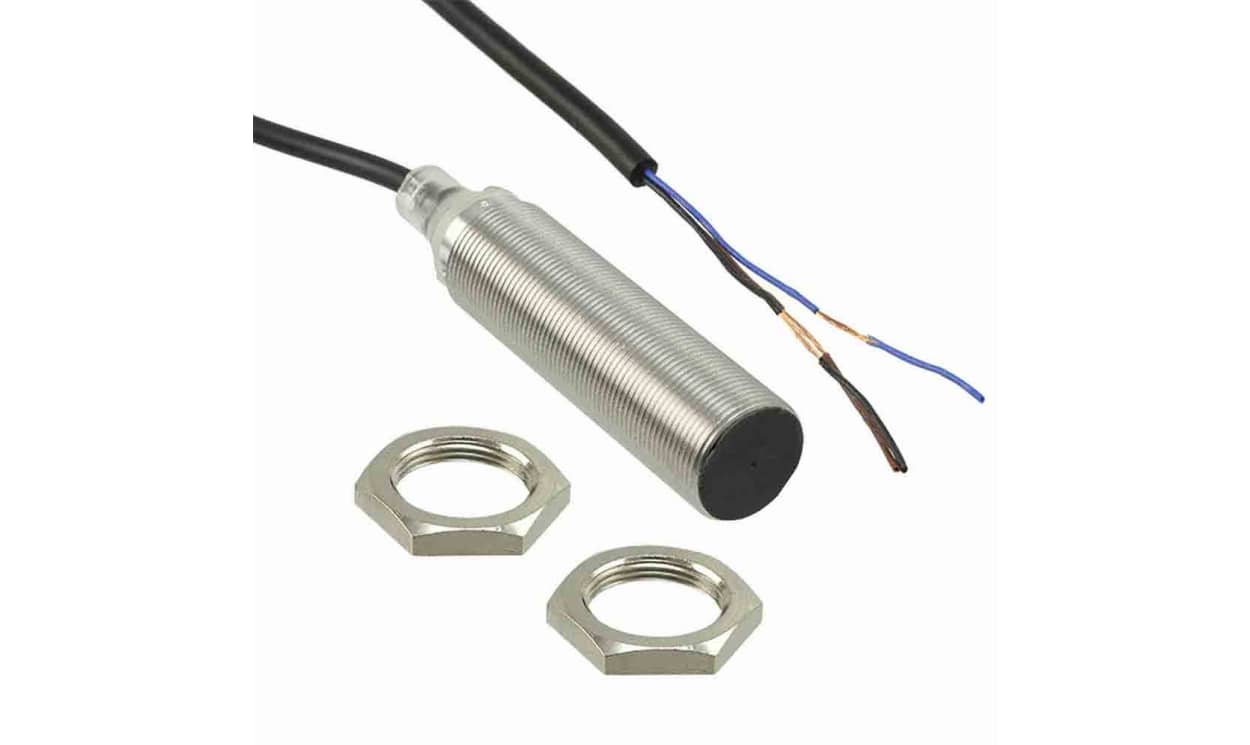

Omron E2B-M18LS08-WP-B2 2M, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 30 V dc - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

OMRON E2B-M18LS08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NC, 2 m Cable

Name: OMRON E2B-M18LS08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NC, 2 m Cable
Brand: OMRON
SKU: E2B-M18LS08-WP-B2 2M
Availability: InStock

Part Number : E2B-M18LS08-WP-B2 2M

OMRON E2B-M18LS08-WP-B2 2M: M18, 8 mm range, PNP-NC inductive threaded-barrel proximity sensor. Wiring is by pre-wired 2 m cable, with a 10 to 30 V DC supply. Further details: IP67 protection and operating temperature -25 to +70 °C.

Type: DC, 3-wire
Mounting: flush, shielded
Switching frequency: 500 Hz
Switching current: 200 mA
Housing length: 78 mm (long body)
Housing material: nickel-plated brass

Availability: low stock

Detailed Description
Specifications
Features
Downloads

This Omron cylindrical proximity sensor, from range E2B and with the sensing distance of 8 mm , is a perfect fit for standard environments. It is provided with an all-round 360 degree indicator.

It is oil-mist environment resistant

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	78mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Frequency	500 Hz
Maximum Switching Frequency	500Hz
Maximum Operating Temperature	+70°C
Switching Current	200 mA
Shielding	Shielded

Proximity sensor, inductive, nickel-brass, long body, M18, shielded, 8 mm, DC, 3-wire, PNP-NC, 2 m cable

OMRON E2B-M18LS08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NC, 2 m Cable

DOWNLOAD CATALOG

OMRON E2B-M18LS08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NC, 2 m Cable
