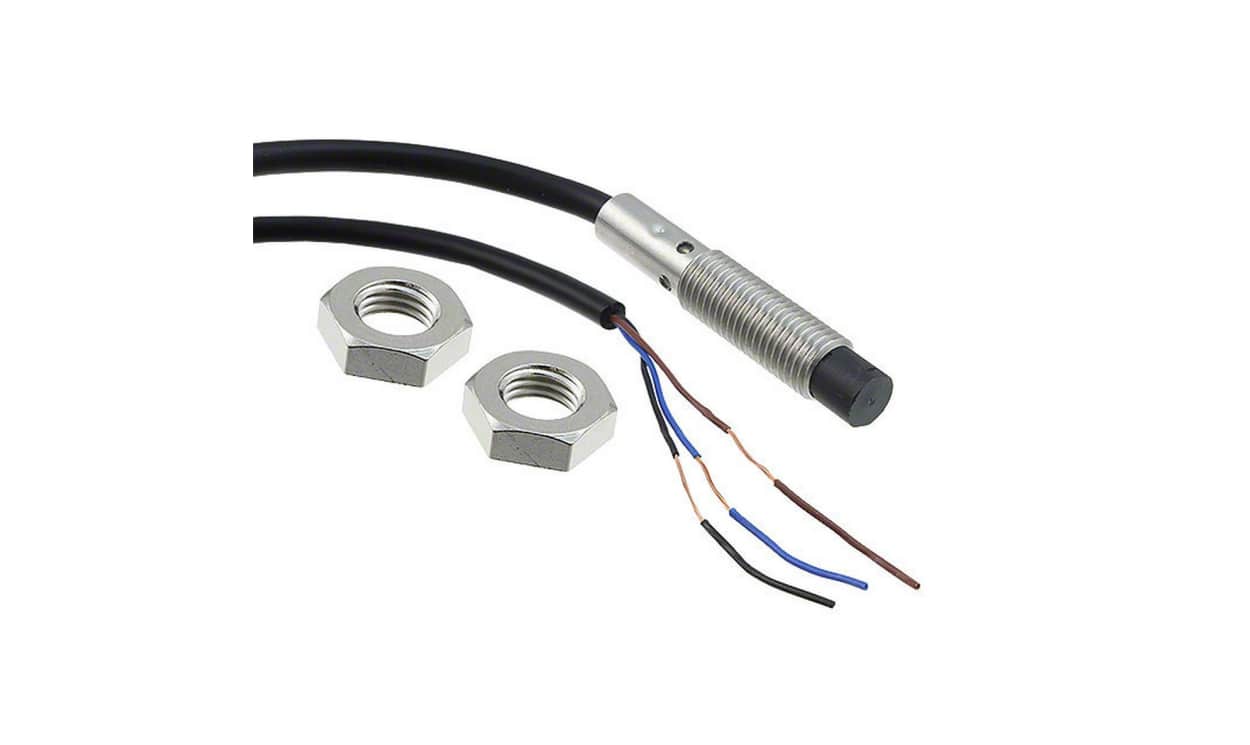

OMRON E2B-S08KN04-WP-B1 5M | Inductive Threaded Barrel Proximity Sensor | M8, 4 mm, PNP NO, 5 m Cable

Name: OMRON E2B-S08KN04-WP-B1 5M | Inductive Threaded Barrel Proximity Sensor | M8, 4 mm, PNP NO, 5 m Cable
Brand: OMRON
SKU: E2B-S08KN04-WP-B1 5M
Availability: InStock

Part Number : E2B-S08KN04-WP-B1 5M

OMRON E2B-S08KN04-WP-B1 5M: M8, 4 mm range, PNP-NO inductive threaded-barrel proximity sensor. Wiring is by pre-wired 5 m cable, with a 10 to 30 V DC supply. Further details: operating temperature -25 to +70 °C.

Mounting: non-flush
Switching frequency: 1 kHz
Switching current: 200 mA
Housing length: 42 mm
Housing material: stainless steel
Protection rating: IP67

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2B Series Proximity Sensor, M8 Thread size, 5m Cable Length - E2B-S08KN04-WP-B1 5M

This proximity sensor is an inductive type, designed for reliable detection in automation applications. With a compact M8 threaded barrel style and stainless steel housing, it measures 42mm in length and is engineered for use in harsh environments thanks to its IP67 rating. The sensor's robust features make it ideal for various industrial settings.

Features & Benefits

• Inductive technology ensures precise and reliable detection
• Non-flush mounted design allows for easy installation and adjustment
• PNP output function simplifies integration with electronic systems
• High-frequency operation at 1 kHz facilitates rapid sensing tasks

Applications

• Used for monitoring conveyor systems in manufacturing
• Suitable for detecting the presence of metal components in assembly lines
• Ideal for automation in packaging machinery where space is limited
• Effective in machines where reliable position sensing is critical

How does the stainless steel housing contribute to the sensor's reliability?

The use of stainless steel in the housing enhances durability and resistance to corrosion, making it suitable for harsh industrial environments where moisture and chemicals are present, thereby extending the overall lifespan of the sensor.

What kind of connection methods are available for this sensor?

It comes with a pre-cabled option featuring a 5m PVC cable, simplifying installation. The sensor can also be integrated with various connector types, allowing for easy maintenance and replacement in different setups.

What is the significance of the IP67 rating in this context?

An IP67 rating indicates that the sensor is completely dust-tight and can withstand immersion in water up to 1 metre for 30 minutes, ensuring reliable performance even in challenging environmental conditions.

How does the proximity sensor perform at different temperatures?

This model is designed to operate efficiently from -25°C to +70°C, making it suitable for a wide range of applications, including those in extreme temperature environments, without compromising detection capability.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	5m
Supply Voltage	10 → 30 V dc
Length	42mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	200 mA
Series	E2B
Switching Frequency	1 kHz
Maximum Operating Temperature	+70°C

OMRON E2B-S08KN04-WP-B1 5M | Inductive Threaded Barrel Proximity Sensor | M8, 4 mm, PNP NO, 5 m Cable

DOWNLOAD CATALOG

E2B-S08KN04-WP-B1 5M Brochure - Inductive Proximity Sensors A700000014068258

E2B-S08KN04-WP-B1 5M Instruction Sheet - E2B Series A700000014068621
