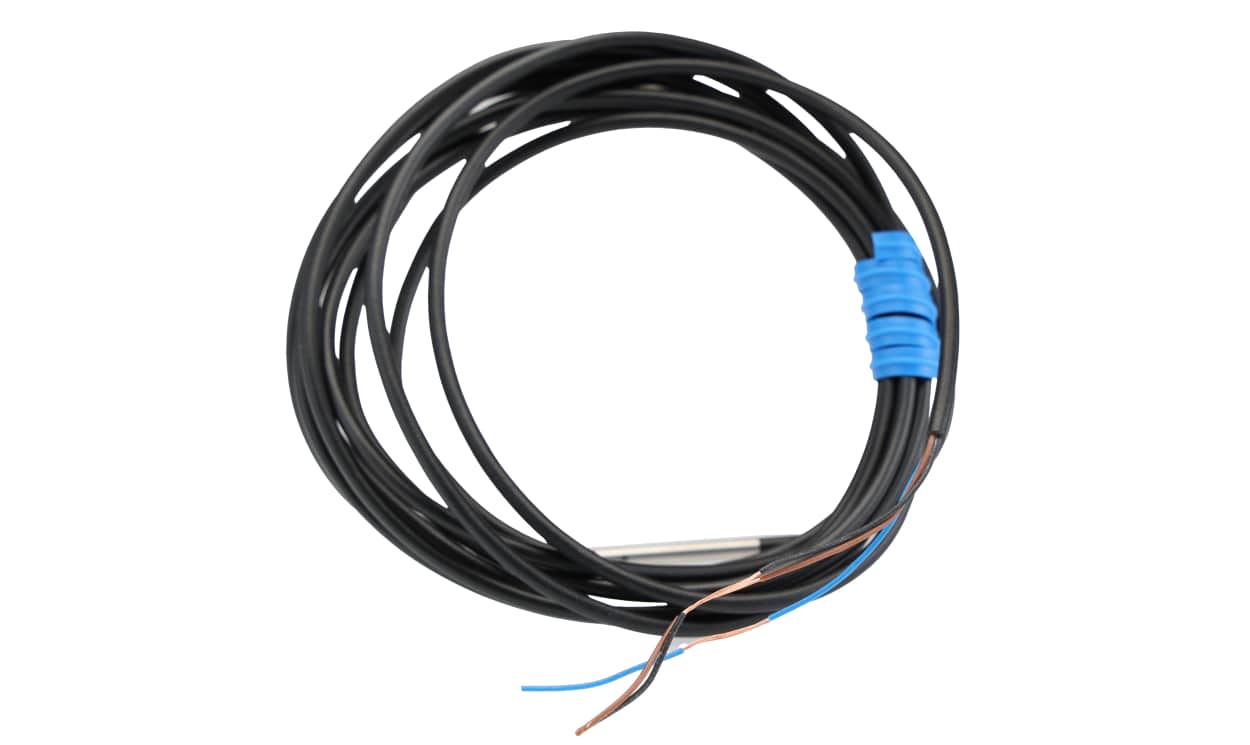

OMRON E2E-C03N02-WC-B1 2M | Inductive Smooth Barrel Proximity Sensor | 3 mm Dia., 2 mm, PNP NO, 2 m Cable

Name: OMRON E2E-C03N02-WC-B1 2M | Inductive Smooth Barrel Proximity Sensor | 3 mm Dia., 2 mm, PNP NO, 2 m Cable
Brand: OMRON
SKU: E2E-C03N02-WC-B1 2M
Availability: InStock

Part Number : E2E-C03N02-WC-B1 2M

This inductive smooth-barrel proximity sensor from OMRON, part number E2E-C03N02-WC-B1 2M, provides a PNP normally open (NO) output over a 2 mm detection range. It comes with a pre-wired 2 m cable. Other listed data include housing material stainless steel, IP67 protection and minimum operating temperature -25 °C.

Supply voltage: 10 to 30 V DC
Mounting: non-flush, unshielded
Switching frequency: 3.5 kHz
Switching current: 50 mA
Housing length: 33 mm
Diameter: 3 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E Series Proximity Sensor, 2mm Detection Range, 2m Cable Length - E2E-C03N02-WC-B1 2M

This proximity sensor falls under the category of inductive detectors, distinguished by its compact size of just 3mm in diameter and a smooth barrel body style. Designed for use in various industrial applications, it features a robust stainless steel housing and a 2m pre-cable for straightforward installation. With a detection range of 2mm, it provides reliable performance in environments where space is at a premium.

Features & Benefits

• Maintains a detection range of 2mm for precise sensing
• Operates effectively within a supply voltage of 10 to 30 V DC
• Features PNP output for reliable signal transmission
• Incorporates reverse polarity and short circuit overload protection

Applications

• Designed for automation in materials handling systems
• Used in conveyor systems for object detection
• Applicable in controlling assembly line processes
• Utilised for position sensing in robotic arms
• Ideal for packaging machinery to detect product presence

How does this sensor ensure stability in fluctuating environments?

The IP67 rating ensures protection against dust penetration and water immersion, which stabilises performance despite varying environmental conditions.

What is the significance of the PNP output in this sensor?

The PNP output facilitates an easy connection to devices and control circuits, ensuring effective data communication without the need for complex wiring configurations.

Can this sensor be used in applications with high-speed moving objects?

Yes, with a maximum switching frequency of 3.5 kHz, it effectively detects high-speed movements, making it suitable for dynamic industrial operations.

What is the advantage of using stainless steel for the housing?

The stainless steel construction provides enhanced durability and resistance to corrosion, ensuring longevity in harsh industrial environments.

How does the mounting type affect installation flexibility?

The non-flush mounting type allows for easy fitting in various locations, accommodating different installation scenarios without compromising sensor performance.

Brand	Omron
Sensor Technology	Inductive
Body Style	Smooth Barrel
Detection Range	2 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	33mm
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Diameter	3 mm
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Series	E2E
Switching Current	50 mA
Maximum Switching Frequency	3.5kHz

OMRON E2E-C03N02-WC-B1 2M | Inductive Smooth Barrel Proximity Sensor | 3 mm Dia., 2 mm, PNP NO, 2 m Cable

DOWNLOAD CATALOG

E2E-C03N02-WC-B1 2M Brochure A700000009870475
