OMRON E2E-X7D112-M1TGJ-T 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, M12 Connector

Name: OMRON E2E-X7D112-M1TGJ-T 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, M12 Connector
Brand: OMRON
SKU: E2E-X7D112-M1TGJ-T 0.3M
Availability: InStock

Part Number : E2E-X7D112-M1TGJ-T 0.3M

The OMRON E2E-X7D112-M1TGJ-T 0.3M is an M12 inductive proximity sensor with a 7 mm sensing distance, a 2-wire normally open (NO) output and an M12 connector. Power the E2E-X7D112-M1TGJ-T 0.3M from 10 to 30 V DC; ingress protection is IP67 and the body is 47.1 mm long.

Flush mounting
Switching frequency up to 350 Hz
Switching current: 100 mA
Minimum operating temperature: -25 °C
Housing material: brass
Short-circuit and overload protection

Availability: low stock

Detailed Description
Specifications
Downloads

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	7 mm
Output Function	NO
Digital Switching Output Type	2-Wire
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	47.1mm
Mounting Type	Flush
Width	21mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	100 mA
Short Circuit Overload Protection	Yes
Depth	21mm
Maximum Switching Frequency	350Hz

OMRON E2E-X7D112-M1TGJ-T 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, M12 Connector

DOWNLOAD CATALOG

OMRON E2E-X7D112-M1TGJ-T 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, M12 Connector

ifm KD0024, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc, 20

ifm IM5118, Inductive Rectangular Proximity Sensor, 15 mm Detection, 26.5 → 31.6 V dc

ifm IG5930, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 36 V dc

ifm IG5378, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 36 V dc

ifm IF5626, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc

ifm KI5030, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, NAMUR NC, 7.5 → 15 V dc

ifm IG0097, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, 2-Wire NC, 20 → 250 V ac/dc, 20

ifm KG5302, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, NPN NC, 10 → 30 V

Meet Us F2F

Brannan 14/231/2 | 380 mm Wood Wall Thermometer | Garden Design, -20 to +50 °C, °C Only

Brannan 15/431/0 | Portable Liquid Expansion Dial Thermometer | Concrete, 400 mm stem, 0 to 100 °C/°F

Brannan 15/421/0 | Portable Liquid Expansion Dial Thermometer | Asphalt/Bitumen, 600 mm stem, 0 to 300 °C/°F

Brannan 10/636/0 | Sea Water Hydrometer | 1.000 to 1.050 g/ml, 0.002 div, 250 mm

OMRON E2E-X7D112-M1TGJ-T 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, M12 Connector

Related Products

ifm KD0024, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc, 20

ifm IM5118, Inductive Rectangular Proximity Sensor, 15 mm Detection, 26.5 → 31.6 V dc

ifm IG5930, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 36 V dc

ifm IG5378, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 36 V dc

ifm IF5626, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc

ifm KI5030, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, NAMUR NC, 7.5 → 15 V dc

ifm IG0097, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, 2-Wire NC, 20 → 250 V ac/dc, 20

ifm KG5302, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, NPN NC, 10 → 30 V

Brannan 14/231/2 | 380 mm Wood Wall Thermometer | Garden Design, -20 to +50 °C, °C Only

Brannan 15/431/0 | Portable Liquid Expansion Dial Thermometer | Concrete, 400 mm stem, 0 to 100 °C/°F

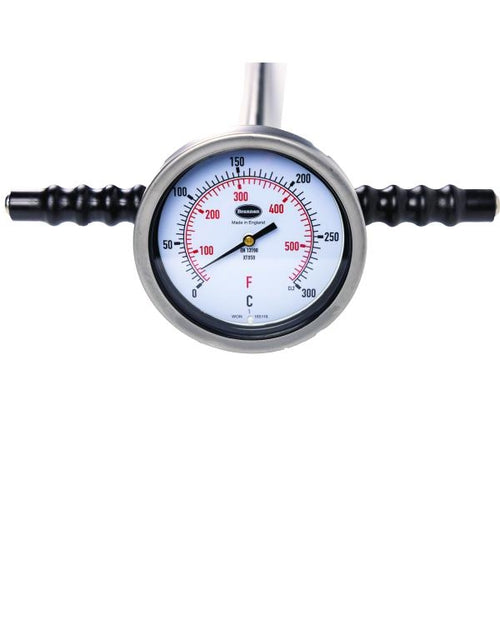

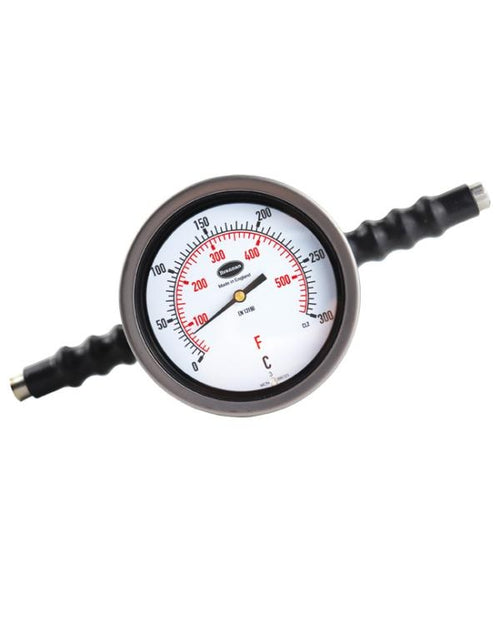

Brannan 15/421/0 | Portable Liquid Expansion Dial Thermometer | Asphalt/Bitumen, 600 mm stem, 0 to 300 °C/°F
