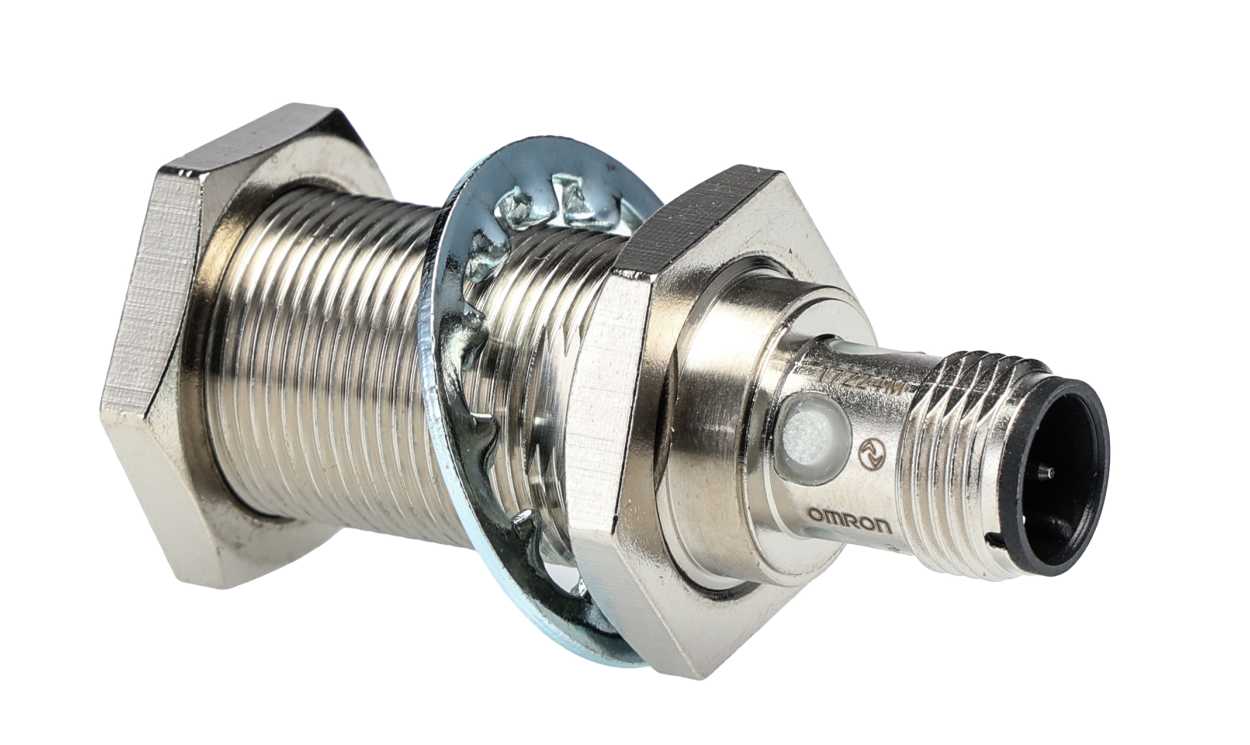

OMRON E2E-X8B3D18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NO+NC, M12 Connector

Name: OMRON E2E-X8B3D18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NO+NC, M12 Connector
Brand: OMRON
SKU: E2E-X8B3D18-M1
Availability: InStock

Part Number : E2E-X8B3D18-M1

This quasi-flush-mounting M18 inductive proximity sensor, OMRON E2E-X8B3D18-M1, has an 8 mm sensing range and provides PNP NO+NC outputs through an M12 connector. The E2E-X8B3D18-M1 operates from 10 to 30 V DC and measures 53 mm in length, with IP67, IP67G, IP69K protection.

Mounting type: quasi-flush
Maximum switching frequency: 500 Hz
Load (switching) current 16 mA
Minimum operating temperature: -25 °C
Short-body version
Brass housing

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron E2E-NEXT Series Proximity Sensor, 8mm Detection Range, IP67 IP69K Rating - E2E-X8B3D18-M1

This inductive proximity sensor is designed for versatile automation applications. With a threaded barrel construction and an IP67 protection rating, it ensures reliable performance in demanding environments. Its detection range reaches up to 8mm, making it well-suited for various sensing needs.

Features & Benefits

• Inductive technology provides stable detection of metallic objects
• Quasi-flush mounting allows for space-efficient installation
• IO-Link capability facilitates real-time data collection and monitoring
• Shielded housing protects against environmental interference
• Robust brass housing offers enhanced durability under harsh conditions
• Reverse polarity and short-circuit protection improve operational reliability

Applications

• Used for precise positioning in automation setups
• Ideal for detecting metal parts in assembly lines
• Utilised in CNC machine operations for accurate part detection
• Effective for monitoring object presence in packaging processes

How does the IO-Link connectivity enhance the sensor's functionality?

The IO-Link feature enables seamless data exchange for monitoring and diagnostics, allowing for predictive maintenance and reducing downtime by alerting users to potential issues before they occur.

What is the significance of the IP67 rating for this sensor?

The IP67 rating ensures that the sensor is dust-tight and can withstand immersion in water up to 1 metre, ensuring reliability and longevity even in harsh industrial environments.

What advantages does the threaded barrel design offer?

The threaded barrel design simplifies installation and alignment, providing flexibility in mounting options while maintaining a secure fit in various applications.

How does the sensor handle extreme temperatures?

With a temperature range of -25°C to +70°C, it operates reliably in both cold and hot environments, making it suitable for diverse operational settings.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO+NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	53mm
Mounting Type	Quasi-Flush
Housing Material	Brass
Width	18mm
Maximum DC Voltage	30V
Diameter	M18
Minimum Operating Temperature	-25°C
Switching Current	16 mA
Series	E2E-NEXT
Switching Frequency	500 Hz

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector

OMRON E2E-X8B3D18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NO+NC, M12 Connector

DOWNLOAD CATALOG

E2E-X8B3D18-M1 Brochure - IO-Link Makes Communication Down To the Sensor Level Visible A700000014065377
