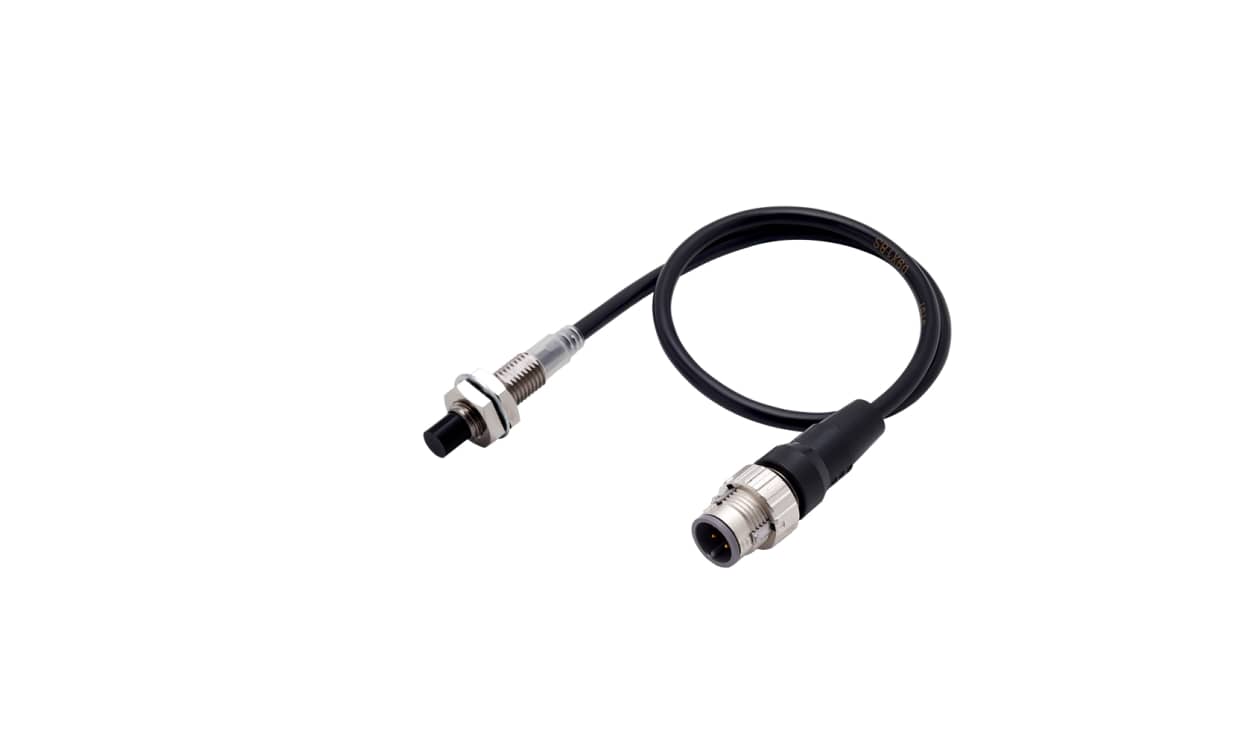

Omron E2E-X8MB1T8-M1TJ 0.3M, Inductive Threaded Barrel Proximity Sensor, M8, 8 mm Detection, PNP NO, 10 → 30 V dc - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

OMRON E2E-X8MB1T8-M1TJ 0.3M | M8 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector

Name: OMRON E2E-X8MB1T8-M1TJ 0.3M | M8 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector
Brand: OMRON
SKU: E2E-X8MB1T8-M1TJ 0.3M
Availability: InStock

Part Number : E2E-X8MB1T8-M1TJ 0.3M

Offering 8 mm detection from an M8 threaded barrel, the OMRON E2E-X8MB1T8-M1TJ 0.3M switches a PNP normally open (NO) output and connects via an M12 connector. The E2E-X8MB1T8-M1TJ 0.3M operates from 10 to 30 V DC and measures 43 mm in length, with IP67 protection.

Mounting: non-flush (unshielded)
Load (switching) current 50 mA
Works from -25 to +70 °C
Series: E2EW
Maximum switching frequency: 500 Hz

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E Series Proximity Sensor, 8mm Detection Range, M8 Thread size - E2E-X8MB1T8-M1TJ 0.3M

This proximity sensor is an inductive type designed for precise detection of metallic objects. It boasts an M8 threaded design with an 8mm detection range, making it suitable for various industrial applications. Constructed with a durable stainless steel housing, this non-flush mount sensor operates on a supply voltage of 10 to 30 V DC and is rated IP67, ensuring protection against dust and water ingress.

Features & Benefits

• Inductive sensor detection range of 8mm provides reliable object detection
• PNP output configuration allows easy integration with control systems
• Non-flush mount design reduces the risk of accidental damage
• High switching frequency of 500Hz supports rapid response usage

Applications

• Ideal for use in automation and factory settings
• Used with machinery for position detection or counting
• Suitable for assembly line setups requiring reliable metal detection
• Effective in environments with exposure to cutting oils and contaminants

What makes this sensor resistant to harsh industrial conditions?

Its stainless steel housing, combined with an IP67 rating, provides excellent resistance against dust and water. This makes it ideal for use in environments where cutting oils and other contaminants are present.

How does the sensor perform in varying temperatures?

Designed to operate effectively within a temperature range of -25°C to +70°C, it ensures consistent performance in both low and high-temperature applications.

How does the sensor's design prevent accidental damage?

The non-flush mount design allows for greater distance between the sensor and potential contact points, which minimises the likelihood of impact damage in confined spaces.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	43mm
Mounting Type	Non-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	50 mA
Maximum Switching Frequency	500Hz
Series	E2EW
Maximum Operating Temperature	+70°C
Switching Frequency	500 Hz
Shielding	Unshielded

OMRON E2E-X8MB1T8-M1TJ 0.3M | M8 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector

DOWNLOAD CATALOG

E2E-X8MB1T8-M1TJ 0

OMRON E2E-X8MB1T8-M1TJ 0.3M | M8 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector

Omron E2E Series Proximity Sensor, 8mm Detection Range, M8 Thread size - E2E-X8MB1T8-M1TJ 0.3M

Features & Benefits

Applications

What makes this sensor resistant to harsh industrial conditions?

How does the sensor perform in varying temperatures?

How does the sensor's design prevent accidental damage?
