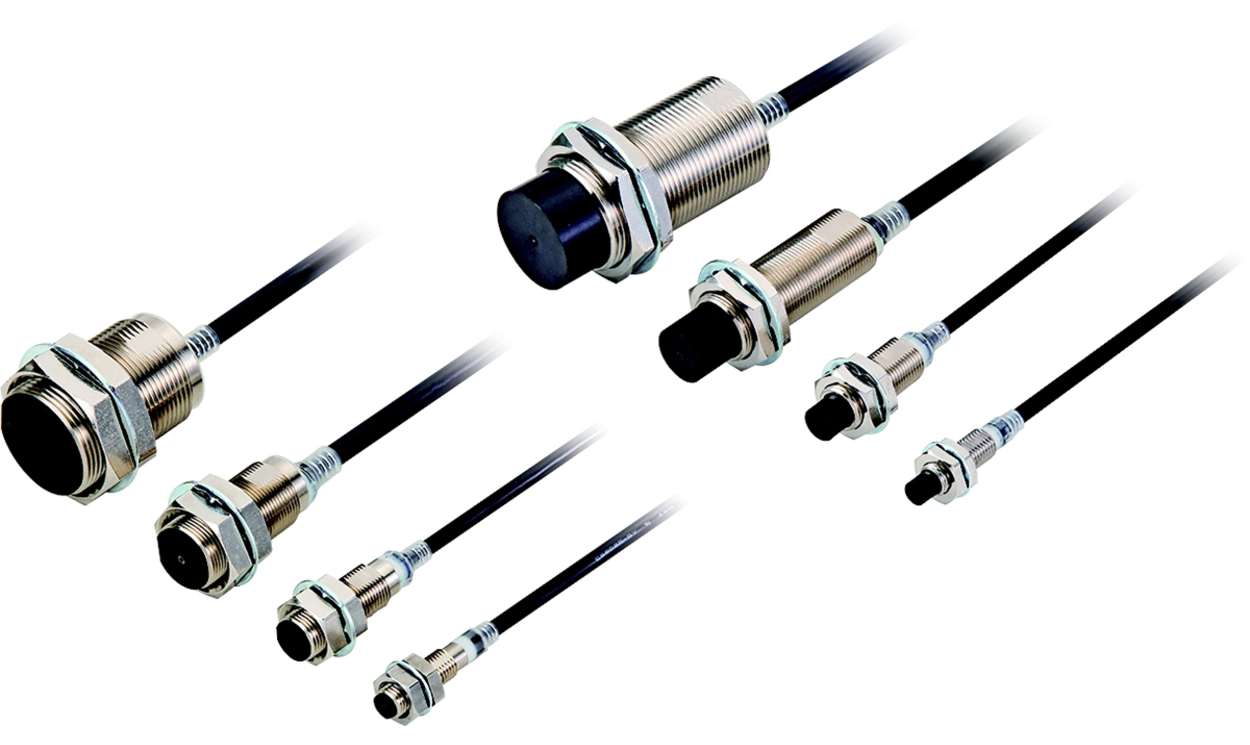

OMRON E2EQ-X11D218-T 2M | M18 Inductive Proximity Sensor | 11 mm Range, 2-Wire NC, 2 m Cable
With a 2 m pre-wired cable and a 2-wire normally closed (NC) output, the OMRON E2EQ-X11D218-T 2M is an inductive sensor that detects targets at up to 11 mm from an M18 threaded barrel. The E2EQ-X11D218-T 2M operates from 10 to 30 V DC and measures 55.3 mm in length, with IP67 protection.
- Non-flush mounting
- Switching frequency up to 250 Hz
- Minimum operating temperature: -25 °C
- Housing material: brass
- Short-circuit and overload protection
- OMRON E2E-NEXT series
- Detailed Description
- Specifications
- Downloads
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
| Brand | Omron |
| Series | E2E-NEXT |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 11 mm (0.433 in) |
| Output Function | NC |
| Connection Type | Pre-Cabled |
| Supply Voltage | 10 → 30 V dc |
| Length | 55.3 mm (2.18 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | 2-Wire |
| Mounting Type | Non-Flush |
| Thread Size | M18 |
| Switching Frequency | 250 Hz |
| Cable Length | 2 m (6.56 ft) |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Brass |
| Width | 29 mm (1.14 in) |
| Short Circuit Overload Protection | Yes |
