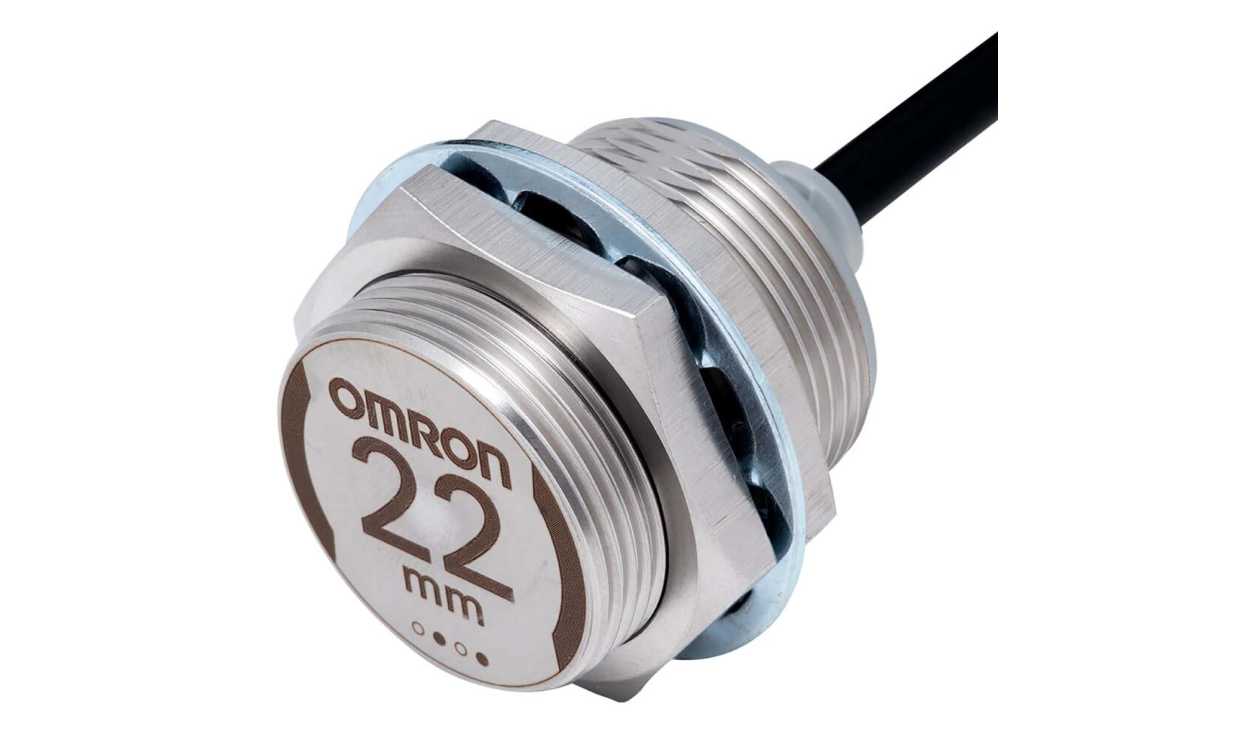

OMRON E2EW-X22C130 2M | Threaded Inductive Proximity Sensor | M30, 22 mm Sensing, NPN NO

Name: OMRON E2EW-X22C130 2M | Threaded Inductive Proximity Sensor | M30, 22 mm Sensing, NPN NO
Brand: OMRON
SKU: E2EW-X22C130 2M
Availability: InStock

Part Number : E2EW-X22C130 2M

OMRON E2EW-X22C130 2M: 22 mm sensing distance, an NPN normally open output and a 2 m pre-wired cable, in an M30 threaded inductive proximity sensor housing. Listed data for E2EW-X22C130 2M include IP67 protection, a 10 to 30 V DC supply and an operating range of 0 to +85 °C.

22 mm sensing distance, M30 thread
Output: NPN NO, switching current 100 mA
Supply voltage 10 to 30 V DC; connection by a 2 m pre-wired cable
IP67 rated, operating temperature 0 to +85 °C
Flush mounting, E2EW series
Length 30 mm

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron Electronics E2EW series welding proximity sensors has DC 3 wire model and M18 thread size. The sensor has the full metal body and offers equivalent sensing distances for both iron and aluminium.

Withstands in harsh environments
Clear status visualization
Stable detection

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	22 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	30mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+85°C
Switching Frequency	2 Hz
Series	E2EW
Maximum Switching Frequency	2Hz
Switching Current	100 mA
