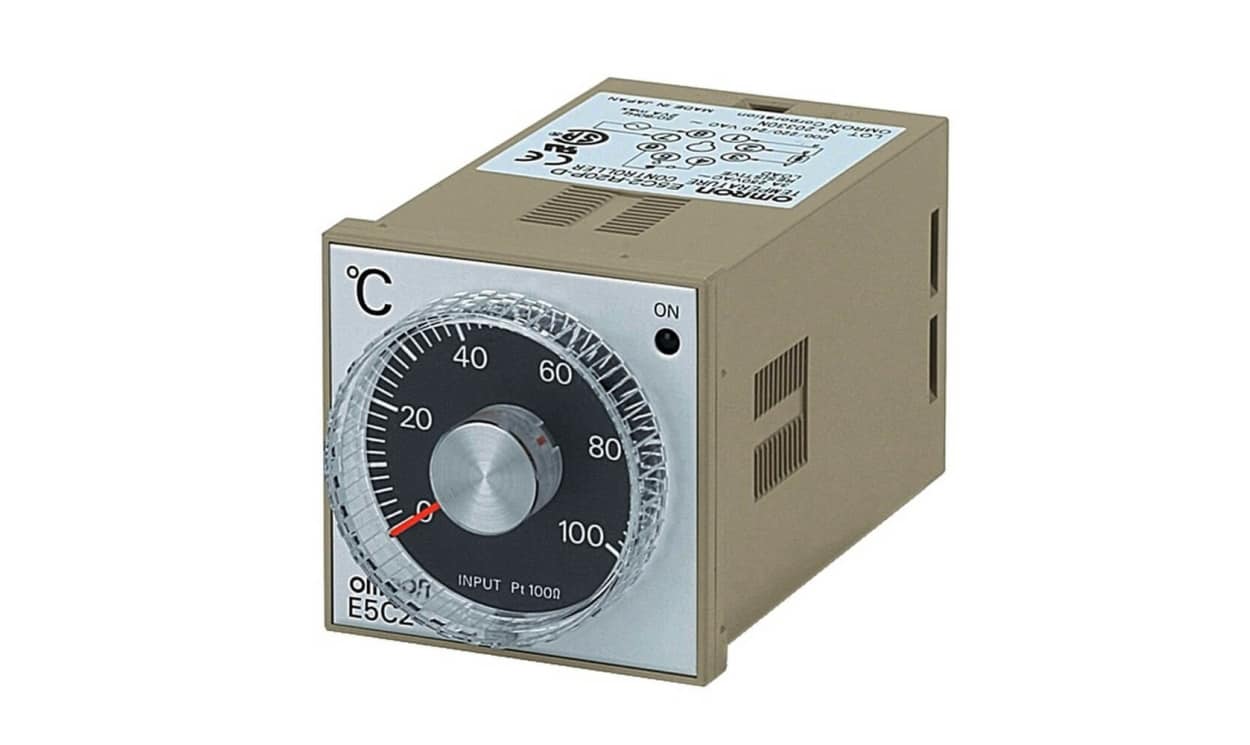

OMRON E5C2-R20P-D 100-240VAC 0-200 | E5C2 ON/OFF Temperature Controller | Pt100 Input, Relay Output
This E5C2 ON/OFF Temperature Controller from OMRON, part number E5C2-R20P-D 100-240VAC 0-200, pairs a relay output with a 100-240 V AC supply, in a 48 x 48 mm format. Supported control on the E5C2-R20P-D 100-240VAC 0-200: ON/OFF control; sensor connection is via Pt100 platinum resistance thermometer input.
- 3 dedicated outputs with 1 dedicated input
- Connections: screw through plug-in socket
- Output type: relay
- Power supply: 100-240 V AC
- Dimensions: 48 x 48 mm
- Mounting: panel mount, DIN rail removable socket
- Detailed Description
- Specifications
- Downloads
Controller allows consecutive mounting possible using mounting adapter
It consists a plug-in socket allowing DIN-track and flush mounting
| Brand | Omron |
| Series | E5C2 |
| Output Type | Relay |
| Supply Voltage | 100 → 240 V ac |
| Size | 48 x 48 mm (1.89×1.89 in) |
| Number of Outputs | 3 dedicated |
| Control Type | ON/OFF |
| Input Type | Platinum Resistance Thermometer ; PT100 |
| Mounting Type | Panel Mount, Din-Rail Removable Socket |
| Termination Type | Screw through plug-in socket |
| Number of Inputs | 1 dedicated |
