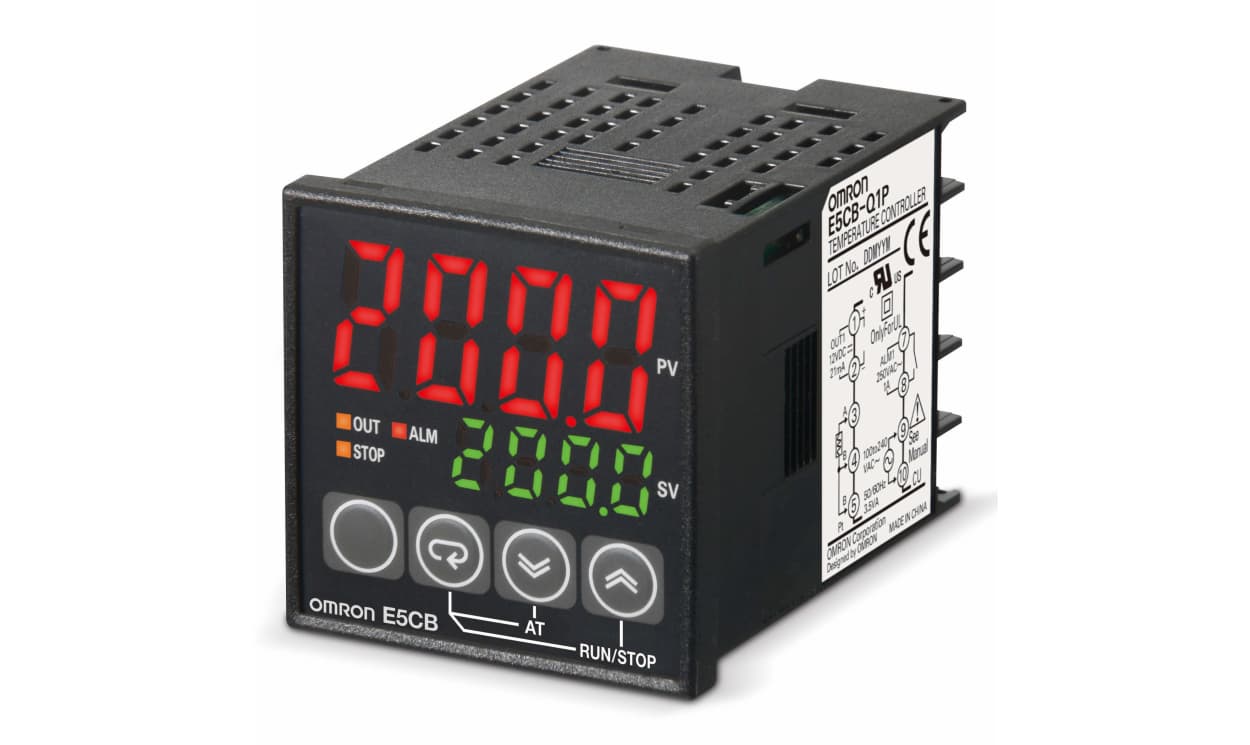

OMRON E5CB-Q1PD 24VAC/DC | E5CB PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC

Name: OMRON E5CB-Q1PD 24VAC/DC | E5CB PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC
Brand: OMRON
SKU: E5CB-Q1PD 24VAC/DC
Availability: InStock

Part Number : E5CB-Q1PD 24VAC/DC

OMRON E5CB-Q1PD 24VAC/DC is an E5CB PID Temperature Controller with SSR (logic) output in a 48 x 48 mm format, powered from 24 V AC/DC. On the E5CB-Q1PD 24VAC/DC, control modes are ON/OFF, PID and 2-PID control, with Pt100 platinum resistance thermometer input.

2 dedicated inputs and 3 dedicated outputs
Output type: SSR (logic)
Power supply: 24 V AC/DC
Dimensions: 48 x 48 mm
Sensor input: Pt100 platinum resistance thermometer
Connections: screw terminal block

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron temperature controller is ideal for heater control, these temperature controllers offer the highest control performance at surprisingly low cost. Easy to read with one of the largest character displays anywhere.

Controller has depth beyond front panel of only 60 mm
It has simple setup with less then 20 parameters
It has faster sampling and loop update at 250 ms

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Inputs	2 dedicated
Number of Outputs	3 dedicated
Control Type	ON/OFF, PID, 2-PID Controller
Mounting Type	Panel Mount
Series	E5CB
Input Type	Platinum Resistance Thermometer ; PT100
Termination Type	Screw terminal block

OMRON E5CB-Q1PD 24VAC/DC | E5CB PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC

DOWNLOAD CATALOG
