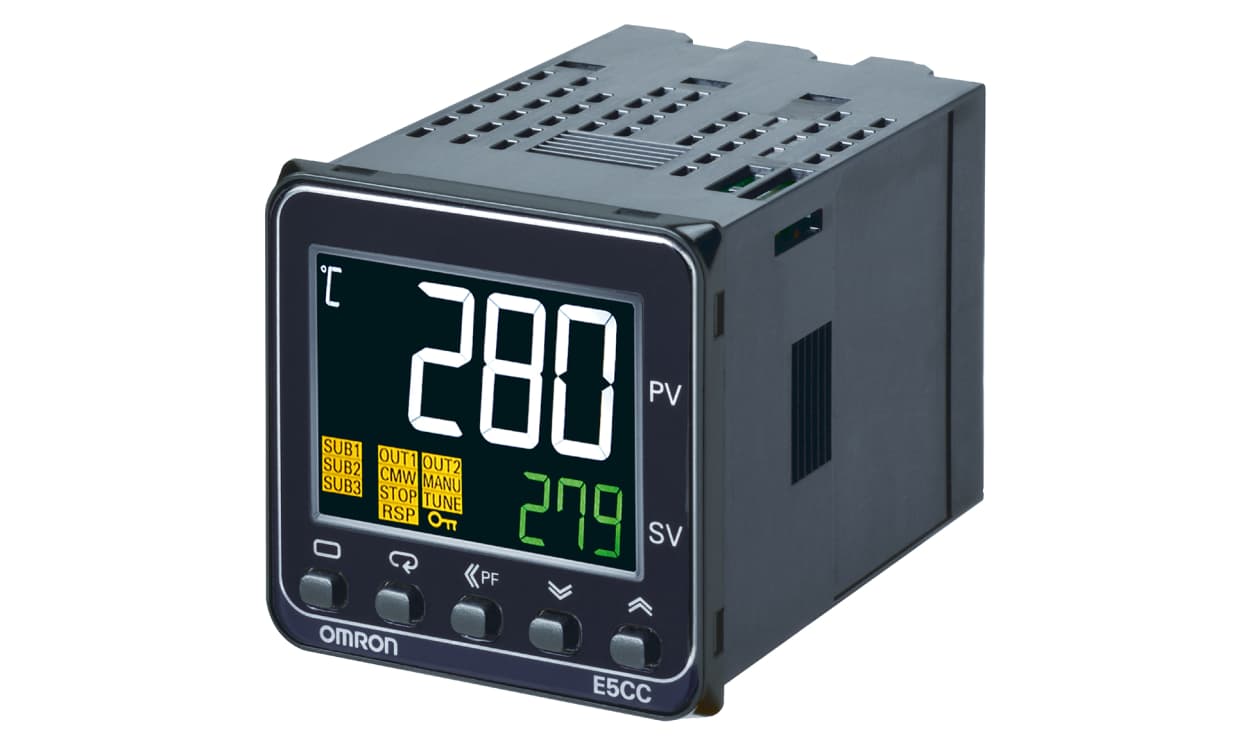

OMRON E5CC-QX2DBM-001 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC

Name: OMRON E5CC-QX2DBM-001 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC
Brand: OMRON
SKU: E5CC-QX2DBM-001
Availability: InStock

Part Number : E5CC-QX2DBM-001

With an SSR (logic) output and a 24 V AC/DC supply, the OMRON E5CC-QX2DBM-001 is an E5CC PID Temperature Controller in a 48 x 48 mm format. Part E5CC-QX2DBM-001 takes universal input (thermocouple, Pt100, analogue) and offers ON/OFF, PID and 2-PID control.

3 inputs / 1 output
Listed ranges: Type K -200 to +1300 °C, Type J -100 to +850 °C, Pt100 -200 to +850 °C, Type B +100 to +1800 °C
Operating temperature: -10 to +55 °C
IP rating: IP00, IP20, IP66
Display: 11-Segment Digital Display, white colour
Panel depth: 72.1 mm

Availability: low stock

Detailed Description
Specifications
Downloads

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

The E5CC-QX2DBM-001 model from Omron features an SSR voltage output as well as a universal input. The controller also features 2 auxiliary outputs for expansion to suit almost any heating or cooling system. The push interminals of the controller provide secure and easy to use connectivity to peripherals for a range of application uses.

Omron's E5CC-QX2DBM-001 model temperature controller also requires a PSU power supply to operate.24 V ac/dc

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Inputs	3
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -200 → +1300 (Type K Thermocouple ) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +850 (Pt100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5CC
Range	Omron E5CC
Mounting Type	Panel Mount
Termination Type	Push-In plus terminal blocks
Panel Depth	72.1mm
Display Colour	White
