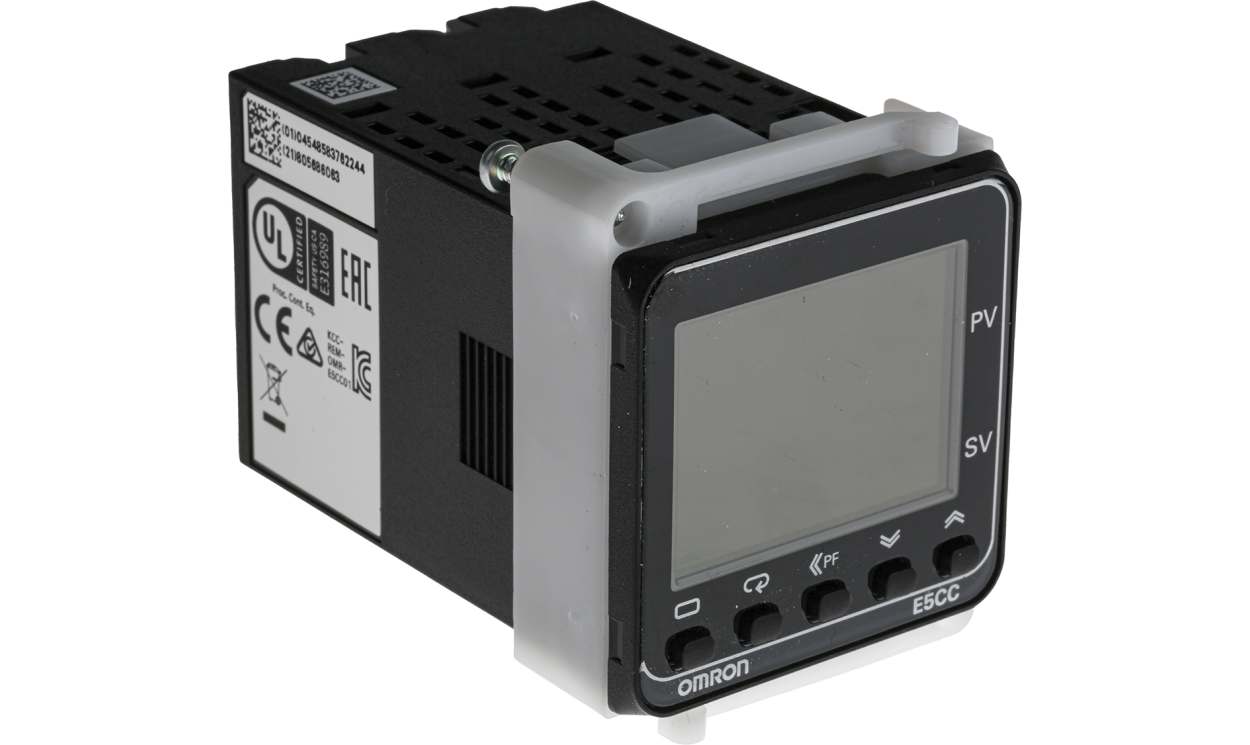

OMRON E5CC-RX2ABM-000 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

Name: OMRON E5CC-RX2ABM-000 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-RX2ABM-000
Availability: InStock

Part Number : E5CC-RX2ABM-000

OMRON E5CC-RX2ABM-000 is an E5CC PID Temperature Controller with relay output, powered from 100-240 V AC. On the E5CC-RX2ABM-000, control modes are ON/OFF, PID and 2-PID control, with universal input (thermocouple, Pt100, analogue).

1 input and 1 output
Sensor ranges include Type K -200 to +1300 °C, Type J -100 to +850 °C and Pt100 -200 to +850 °C
Operating temperature: -10 to +55 °C
IP rating: IP00, IP20, IP66
Display: 11-Segment Digital Display, white colour
Panel depth: 72.1 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E5CC Series PID Temperature Controller, 100 to 240V AC Supply Voltage, Panel Mounting - E5CC-RX2ABM-000

This PID temperature controller is designed for precise temperature management in various industrial applications, playing a critical role in automation systems to ensure performance and efficiency. It accommodates a wide temperature range and is suitable for different thermocouple types. The user-friendly digital display and multiple input options enhance operational flexibility, addressing the diverse needs in automation and mechanical sectors.

Features & Benefits

• Offers ON/OFF and PID control methods for versatile regulation
• Supports various thermocouple types for comprehensive temperature sensing
• Incorporates a robust relay output for dependable control actions
• Features digital setting capabilities for straightforward configuration
• Provides an IP66 rating, ensuring resistance against dust and water
• Allows for sampling periods of 50ms for rapid response times

Applications

• Used for temperature monitoring in manufacturing processes
• Applied in temperature control for food processing industries
• Utilised in HV AC systems for precise climate control
• Implemented in laboratories for experimental temperature regulation

How is the temperature range adjusted within the controller?

The temperature range can be modified through the digital settings on the front panel, enabling customisable control based on specific requirements.

What input types can be connected to this device?

It accepts various input types including thermocouples and platinum resistance thermometers, providing flexibility in application.

Is installation straightforward for those unfamiliar with temperature controllers?

Installation is manageable by following the provided guidelines, allowing users to set it up with minimal technical expertise.

How can maintenance be performed on the temperature controller?

Routine maintenance involves checking connections and ensuring cleanliness of the unit, contributing to its longevity and reliability.

What are the options for auxiliary output with this device?

The controller includes two auxiliary relay outputs for enhanced functionality in temperature regulation tasks.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	96 x 96mm
Number of Inputs	1
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -200 → +1300 (Type K Thermocouple ) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +850 (Pt100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	Omron E5CC
Series	E5CC
Panel Depth	72.1mm
Termination Type	Push-In plus terminal blocks
Display Colour	White

OMRON E5CC-RX2ABM-000 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

DOWNLOAD CATALOG

E5CC-RX2ABM-000 Guide - E5CC Series A700000011915829

E5CC-RX2ABM-000 Brochure - Digital Temperature Controllers A700000011915877

E5CC-RX2ABM-000 Instruction Sheet - E5CC Series A700000011915977
