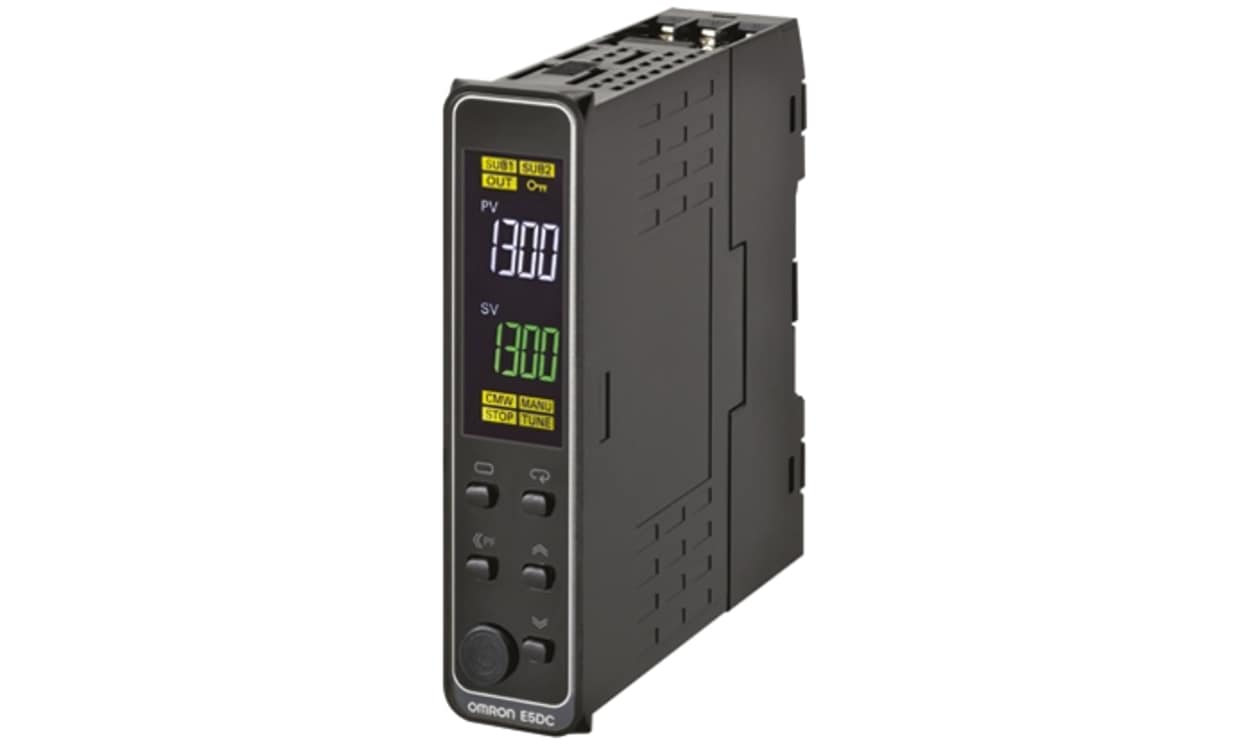

OMRON E5DC-QX2ASM-017 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC

Name: OMRON E5DC-QX2ASM-017 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5DC-QX2ASM-017
Availability: InStock

Part Number : E5DC-QX2ASM-017

With two SSR/logic outputs and a 100 to 240 V AC supply, the E5DC-series OMRON E5DC-QX2ASM-017 is a DIN-rail or panel-mount PID temperature controller measuring 48 x 48 mm; the listed temperature range is -200 to +1300 °C (Type K), -200 to +850 °C (Pt100).

Control modes: ON/OFF, PID, 2-PID
Input types: universal (platinum RTD, Pt100, thermocouple, analogue)
IP rating: IP00, IP20
Display: 11-segment digital display
Panel depth: 85 mm
Operating temperature: -10 °C to +50 °C

Availability: low stock

Detailed Description
Specifications
Downloads

E5DC Digital Temperature Controllers (22.5 mm wide)

The E5DC temperature controller is setting a new global standard in terms of precision and user-friendly design. Best control performance, easy set-up and outstanding visibility of the white LCD display have been integrated into a space-saving housing with only 22.5mm wide.

Fast and precise regulation: 50ms sampling loop period time
Easy to set up, and operate intuitively via CX-Thermo without power supply
Setup Tool Port on the front panel
Useful alarm and diagnosis functions for secure operation
Width of 22.5 mm
Removable terminal block for easy mounting and replacement
DIN rail mounting

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+50°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PL II Thermocouple) °C, 0 → +1700 (R & S Thermocouples) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +500 (JPT100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +400 (Type U Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (PT100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	No
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Additional Functionality	ON/OFF
Mounting Type	DIN Rail, Panel Mount
Series	E5DC
Range	Omron E5DC
Termination Type	Screw terminal block
Panel Depth	85mm

OMRON E5DC-QX2ASM-017 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC

DOWNLOAD CATALOG

E5DC-QX2ASM-017 Datasheet 0900766b8157dfce
