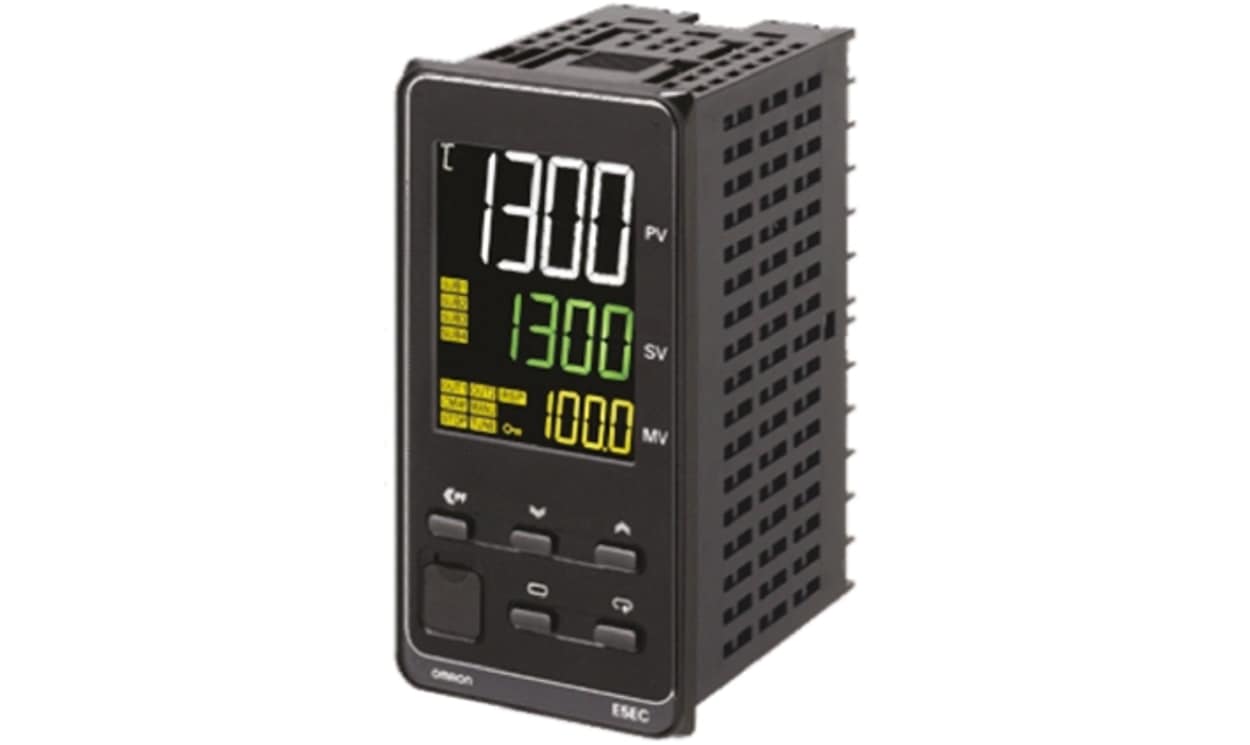

Name: Omron E5EC-CX4D5M-000, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Linear, Analogue, 4-20 mA, 24 V ac/dc Supply
Brand: OMRON
SKU: E5EC-CX4D5M-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5EC-CX4D5M-000, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Linear, Analogue, 4-20 mA, 24 V ac/dc Supply

Part Number : E5EC-CX4D5M-000

Availability: Sold out

Detailed Description
Specifications

E5EC Digital Temperature Controllers (48 x 96mm)

Premium range of temperature controllers which support a wide variety of applications. The controllers cover a comprehensive array of sensor inputs including Universal, Thermocouple, PT and Analogue current/voltage. Within the E5EC range, there is a temperature controller to suit your requirements.

• Large white LCD display, 18 mm of height for best visibility
• Three level display- PV/SV/MV displayed at the same time with 4-digit display
• 50 ms sampling period time
• Extended range of I/O's: 4 auxiliary outputs, 6 event inputs, transfer output and remote SP's
• Short housing case with only 60 mm of depth
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Tool ports provided both on top panel and front panel
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Linear, Analogue, 4-20 mA
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Series	E5EC
Termination Type	Screw terminal block
Panel Depth	60mm
