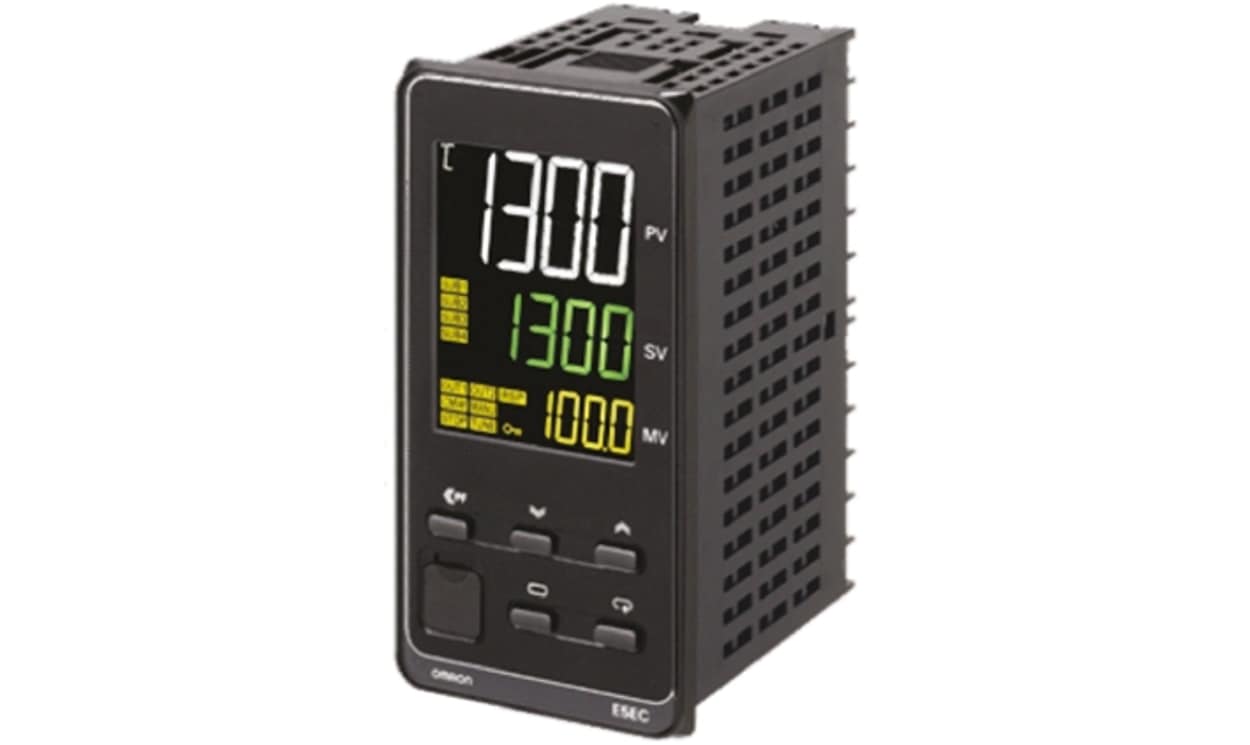

OMRON E5EC-QR4D5M-009 | PID Temperature Controller | 48 x 48 mm, SSR + Relay Output, 24 V AC/DC

Name: OMRON E5EC-QR4D5M-009 | PID Temperature Controller | 48 x 48 mm, SSR + Relay Output, 24 V AC/DC
Brand: OMRON
SKU: E5EC-QR4D5M-009
Availability: InStock

Part Number : E5EC-QR4D5M-009

The OMRON E5EC-QR4D5M-009 is a 48 x 48 mm panel-mount PID temperature controller from the E5EC series, fitted with two outputs (SSR/logic and relay types) and powered from 24 V AC/DC; the specified temperature range is -200 to +2300 °C (thermocouple), -200 to +850 °C (platinum RTD).

ON/OFF, PID, 2-PID control
Input types: universal (platinum RTD, Pt100, thermocouple, analogue)
Display colour: white
Depth behind panel: 59 mm
Operating temperature: -10 °C to +55 °C
Terminals: screw terminal block

Availability: low stock

Detailed Description
Specifications
Downloads

E5EC Digital Temperature Controllers (48 x 96mm)

Premium range of temperature controllers which support a wide variety of applications. The controllers cover a comprehensive array of sensor inputs including Universal, Thermocouple, PT and Analogue current/voltage. Within the E5EC range, there is a temperature controller to suit your requirements.

• Large white LCD display, 18 mm of height for best visibility
• Three level display- PV/SV/MV displayed at the same time with 4-digit display
• 50 ms sampling period time
• Extended range of I/O's: 4 auxiliary outputs, 6 event inputs, transfer output and remote SP's
• Short housing case with only 60 mm of depth
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Tool ports provided both on top panel and front panel
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic, Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Series	E5EC
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Termination Type	Screw terminal block
Panel Depth	59mm
Display Colour	White
